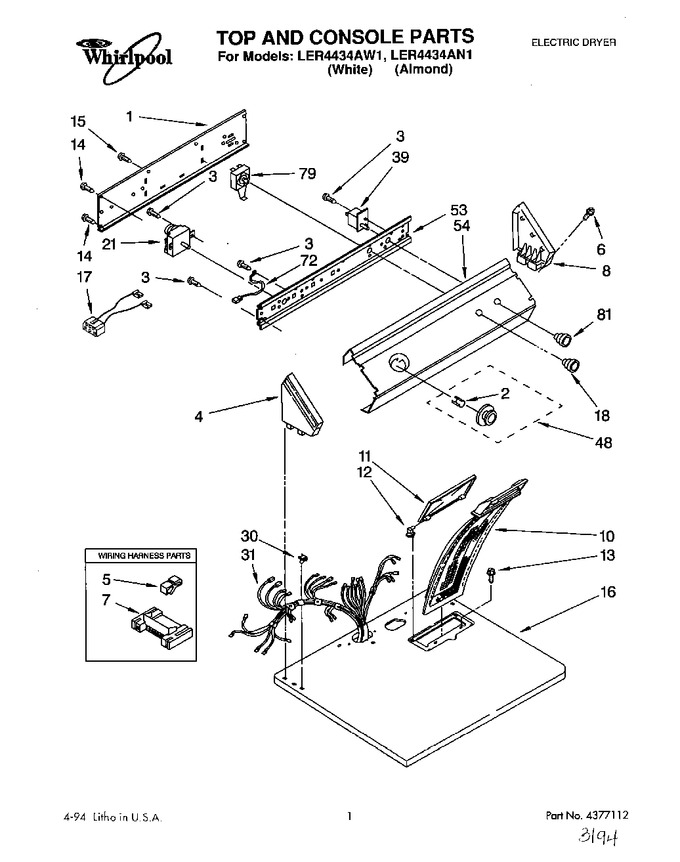

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
2	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.03
3	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 6.75
4	3358531		Cap, End (l.h.) (white)		Appelez-nous	-
4	3358532		Cap, End (l.h.) (almond)		Appelez-nous	-
5	689180		Clip, Retainer		Appelez-nous	-
6	WP388326		Screw, Console   (Replaces: 3353145)				$ 7.30
7	3395683		Housing, Connector (motor)			Immediately	$ 46.67
8	3358516		Cap, End (r.h.) (white)		Appelez-nous	-
8	3358517		Cap, End (r.h.) (almond)		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 37.72
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 6.95
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
14	WP489069		Screw, Hex Head   (Replaces: 693994)			Immediately	$ 7.07
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.47
16	3396023		Top (almond)		Appelez-nous	-
16	3396022		Top (white)		Appelez-nous	-
17	8283286		Wire Jumper Assembly   (Replaces: 3396028)		Appelez-nous	-
18	WP8538957		Contorl Knob, Temperature   (Replaces: 3358431)				$ 50.17
21	3396215		Timer 60 Hz.				$ 180.59
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.65
31	3396640		Harness, Wiring		Appelez-nous	-
39	660936		Switch, Push-to-start		Appelez-nous	-
48	WP3957752		Timer Knob Assembly   (Replaces: 3396145)				$ 48.56
53	3396293		Bracket, Control		Appelez-nous	-
54	3397145		Panel, Control (white)		Appelez-nous	-
54	3397146		Panel, Control (almond)		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
79	3354281		Switch, Temperature		Appelez-nous	-
81	3396160		Knob, Push To Start		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	LIT3396296		Use & Care Guide		Appelez-nous	-
	LIT3397597		Instructions, Installation		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	LIT677818		Dryer		Appelez-nous	-
	LIT3397889		Label, Wiring Diagram		Appelez-nous	-
