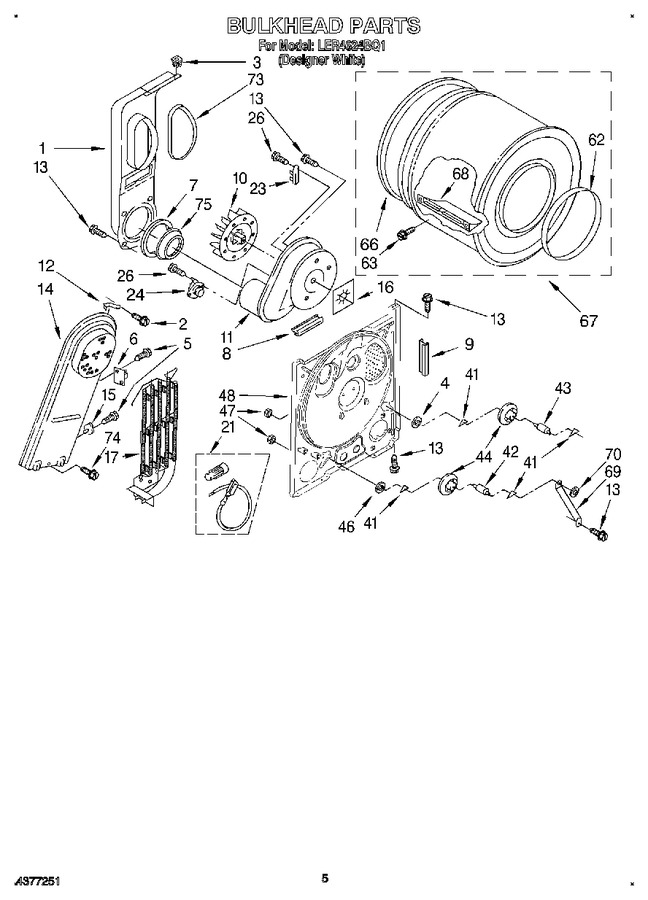

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279505 | Lint Chute, Assembly (Replaces: 694283) |
|
$ 272.35 | |||||
| 2 | WP489463 | 8-18 X 3/4 (Replaces: 3400800) |
|
$ 7.04 | |||||
| 3 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 4 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 6.72 | |||||
| 5 | WP90767 | Screw, 8 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 6 | 279769 | Thermal, Cut-off (hi-limit Thermostat Illus. No.15 Included) (Replaces: 3398671) |
|
Immediately | $ 56.57 | ||||
| 7 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 16.41 | ||||
| 8 | 686889 | Pad, Cabinet |
|
- | |||||
| 9 | 686889 | Pad, Blower Housing (Replaces: 3392247) |
|
- | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 33.89 | ||||
| 11 | 695081 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 12.90 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 14 | 695547 | Box, Heater |
|
- | |||||
| 15 | WP3390291 | Thermostat, High Limit 250~f (121.1~c) (60 Hz.) (Replaces: 3390291) |
|
Immediately | $ 85.45 | ||||
| 16 | 3392123 | Seal, Blower Shaft |
|
- | |||||
| 17 | WP4391960 | (alt.) (Replaces: 693300) |
|
Immediately | $ 54.50 | ||||
| 17 | WP4391960 | (alt.) (Replaces: 693298) |
|
Immediately | $ 54.50 | ||||
| 17 | WP4391960 | (alt.) (Replaces: 693062) |
|
Immediately | $ 54.50 | ||||
| 17 | WP4391960 | Element, Heater (for 240 Volt Installation) (Replaces: 660982) |
|
Immediately | $ 54.50 | ||||
| 21 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 23 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 24 | AT022 | Thermostat, 150 F (66c) (Replaces: 660039) |
|
Immediately | $ 31.65 | ||||
| 26 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 695239) |
|
Immediately | $ 9.65 | ||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 65.44 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 42.57 | ||||
| 44 | 349241T | Roller, Support (Replaces: 3397588) |
|
Immediately | $ 26.58 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 6.47 | |||||
| 47 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 6.47 | ||||
| 48 | 3397264 | Bulkhead |
|
- | |||||
| 62 | WP3394508 | Bearing, Ring (Replaces: 3394508) |
|
$ 113.02 | |||||
| 63 | WPW10109200 | Screw, 11-16 X 7/8 (Replaces: 97787) |
|
Immediately | $ 7.20 | ||||
| 66 | 239087 | Seal, Rear Drum (Replaces: 337449) |
|
Immediately | $ 56.50 | ||||
| 67 | 3396775 | Drum Assembly |
|
$ 302.60 | |||||
| 68 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 132.28 | |||||
| 69 | 348945 | Bracket, Support |
|
- | |||||
| 70 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.07 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 7.77 | ||||
| 74 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 3390663) |
|
Immediately | $ 7.07 | ||||
| 75 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 20.06 |
