SELECT A DIAGRAM

01 - Top And Cabinet

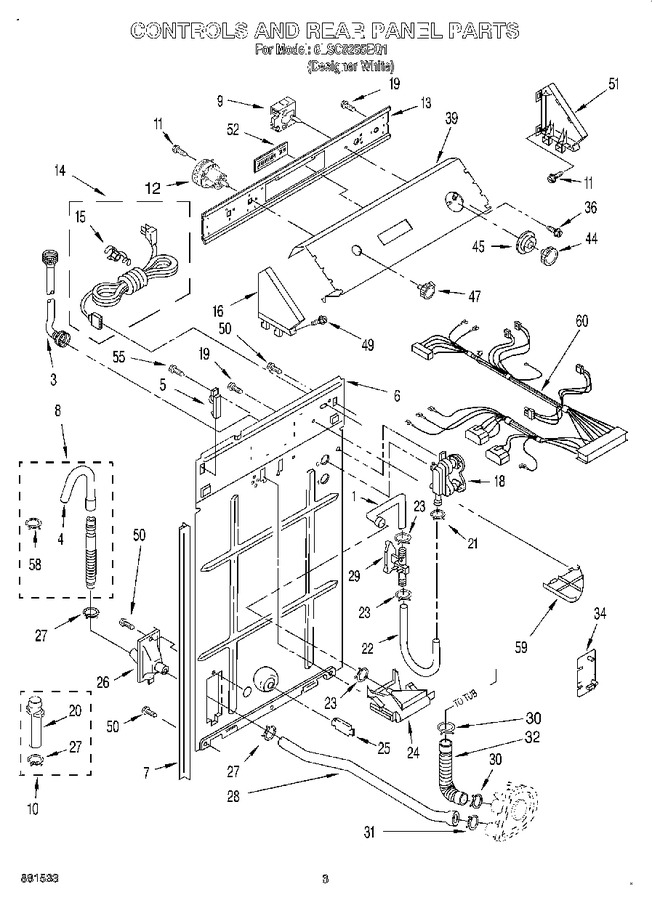

02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Machine Base


06 - Wiring Harness


07 - Brake And Drive Tube


08 - Gearcase


09 - Water System


10 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 19.21
3	WPW10489643		Hose, Water Inlet (2)   (Replaces: 3366916)				$ 70.16
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 83.88
5	387402		Hinge, Console (2)				$ 5.84
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 33.20
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 54.81
9	3952433		Timer, Control (50 Hz.) (motor Not A Service Part)		Appelez-nous	-
10	285750		(kit-adapter) (includes. Item) (20. And 27.)		Appelez-nous	-
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
12	W10339326		Switch, Water Level   (Replaces: 3366845)			Immediately	$ 79.17
13	3950194		Bracket, Control		Appelez-nous	-
14	3353308		Cord, Power		Appelez-nous	-
15	3949468		Strain Relief, Power Cord		Appelez-nous	-
16	3358513		Cap, End (l.h.)		Appelez-nous	-
18	285874		Valve, Water Mixing   (Replaces: 3360398)				$ 183.31
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
20	3363920A		Adapter-drain Hose   (Replaces: 3363920)				$ 7.91
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
22	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 24.49
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Connector, Drain Hose   (Replaces: 3361809)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	3359816		Hose, Pump To Drain Connector		Appelez-nous	-
29	3352282		Sensor, Inline				$ 66.68
29	WP3388228		Screw (2)   (Replaces: 3388228)				$ 6.26
30	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 7.03
31	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
32	285871		Hose, Pump To Tub   (Replaces: 3950340)			Immediately	$ 24.01
34	WP3388228		Screw (2)   (Replaces: 3388228)				$ 6.26
34	3407154		Control, Atc		Appelez-nous	-
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 7.13
39	3952447		Panel, Console		Appelez-nous	-
44	WP3364293		Knob, Timer   (Replaces: 3364291)			Immediately	$ 53.51
45	WP3957841		Dial, Timer   (Replaces: 3950762)				$ 40.82
47	WP3957796		Knob, Control   (Replaces: 3950759)			Immediately	$ 49.35
49	WP388326		Screw, 8-18 (2) (panel To Top)   (Replaces: 388326)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	3358528		Cap , End (r.h.)		Appelez-nous	-
52	3952440		Switch, Clean Touch (7 Pad)		Appelez-nous	-
55	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 6.80
59	3348424		Sheild, Suds		Appelez-nous	-
60	3952429		Harness, Wiring (for Detail See Page 6.) Also See Clips.		Appelez-nous	-
