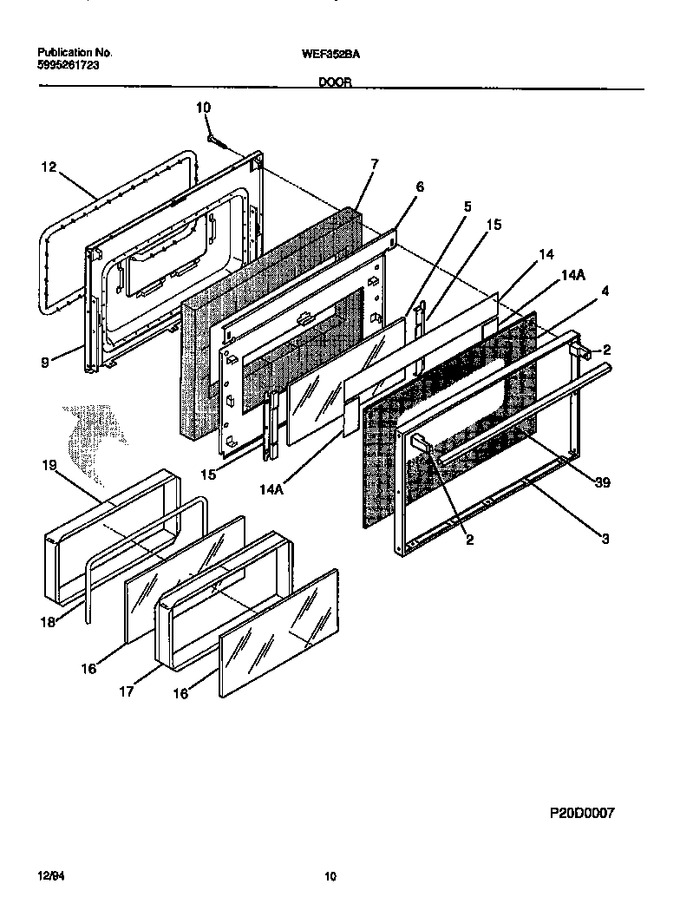

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3016755		End Cap, Black, (2)		Appelez-nous	-
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	3051152		Glass-oven Door, Black, Outer		Appelez-nous	-
5	5303209513		Glass-oven Door, Inner		Appelez-nous	-
6	5303211084		Shield-insulation		Appelez-nous	-
7	5303209514		Insulation-oven Door		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303131601		Seal-oven Door				$ 374.63
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
15	5303209510		Bracket-glass Mtg		Appelez-nous	-
16	5303209512		Glass-oven Door, Heat Barrier, (2)				$ 150.41
17	5303209517		Spacer-glass		Appelez-nous	-
18	5303211085		Seal-rope, 0.25 Dia				$ 44.00
19	316067600		Collar-glass Mtg		Appelez-nous	-
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
14A	5303208655		Reflector, Aluminum Foil, (2)		Appelez-nous	-
39A	3203618		Rivet-pop, Waring-plate (non-illustrated)		Appelez-nous	-
39B	316065300		Plate Warning/caution (non-illustrated)		Appelez-nous	-
39C	5303212671		Screw, Cr Pan Hd Sems, 8-32(bp) X 1 (non-illustrated)		Appelez-nous	-
39D	5303212762		Screw, 8-18 X 1/2, (non-illustrated)		Appelez-nous	-
39E	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2, (non-illustrated)			Immediately	$ 13.46
