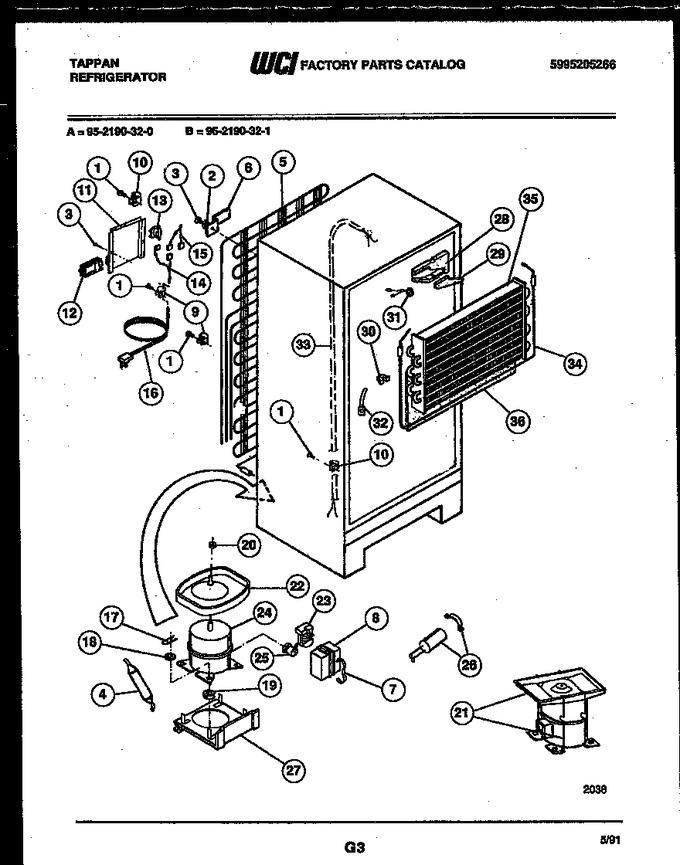

05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 2 | 5308009617 | Washer-no. 10 Ext Tooth Lock (2) |
|
- | |||||
| 3 | 5308000039 | Screw |
|
- | |||||
| 4 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 5 | 5300163133 | Condenser |
|
- | |||||
| 6 | 5303001342 | Bracket-condenser (4) |
|
- | |||||
| 7 | 5303006412 | Strap-bale |
|
- | |||||
| 8 | 5303006411 | Cover, Terminal |
|
- | |||||
| 9 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 10 | 53080000133 | Clamp-tube (3) |
|
- | |||||
| 11 | 5303211914 | Cover, Wiring |
|
- | |||||
| 12 | 5303211915 | Beeper-door Ajar |
|
- | |||||
| 13 | 5303211916 | Transformer-door Ajar |
|
- | |||||
| 14 | 5303001347 | Harness-compressor |
|
- | |||||
| 15 | 5303211926 | Harness-divider |
|
- | |||||
| 16 | 5316254901 | Service Cord |
|
- | |||||
| 17 | 5308003596 | Clip-comp Mtg (4) |
|
$ 6.62 | |||||
| 18 | 5308003633 | Washer-comp Mtg (4) |
|
$ 35.67 | |||||
| 19 | 5308008778 | Grommet-comp Mtg (4) |
|
- | |||||
| 20 | 5303001348 | Nut-lock |
|
$ 2.73 | |||||
| 21 | 5303916001 | Pan Defrost-kit-retainer |
|
$ 78.75 | |||||
| 22 | 5300184715 | Pan Defrost-service Comp Only Model B |
|
- | |||||
| 23 | 5303007173 | Relay |
|
$ 207.43 | |||||
| 24 | 5303916012 | Compressor |
|
- | |||||
| 25 | 5308017532 | Overload |
|
- | |||||
| 26 | 5303916391 | Capacitor |
|
- | |||||
| 27 | 5308013663 | Plate-compressor Mtg |
|
- | |||||
| 28 | 5308013648 | Block Insulation-rh |
|
- | |||||
| 29 | 5303007287 | Plug-insulation Rh |
|
- | |||||
| 30 | 5308017227 | Block Insulation-lh |
|
- | |||||
| 31 | 5303917954 | Defrost-thermostat (Replaces: 5316269001) |
|
Immediately | $ 30.47 | ||||
| 32 | 5308000110 | Strap-evap (2) |
|
Immediately | $ 59.82 | ||||
| 33 | 5308000728 | Heat Exchanger |
|
- | |||||
| 34 | 5317842502 | Heater-defrost |
|
$ 133.96 | |||||
| 35 | 5303271578 | Evaporator |
|
- | |||||
| 36 | 5316651102 | Insulator, Plastic |
|
$ 53.04 | |||||
| *51013 | 5300189383 | Hot Tube Repair Kit |
|
$ 613.15 | |||||
| 12A | 5303212893 | Screw 6-20ab X 1/2`` (non-illustrated) |
|
- | |||||
| 20A | 5308017610 | Tape-sound (non-illustrated) |
|
- |
