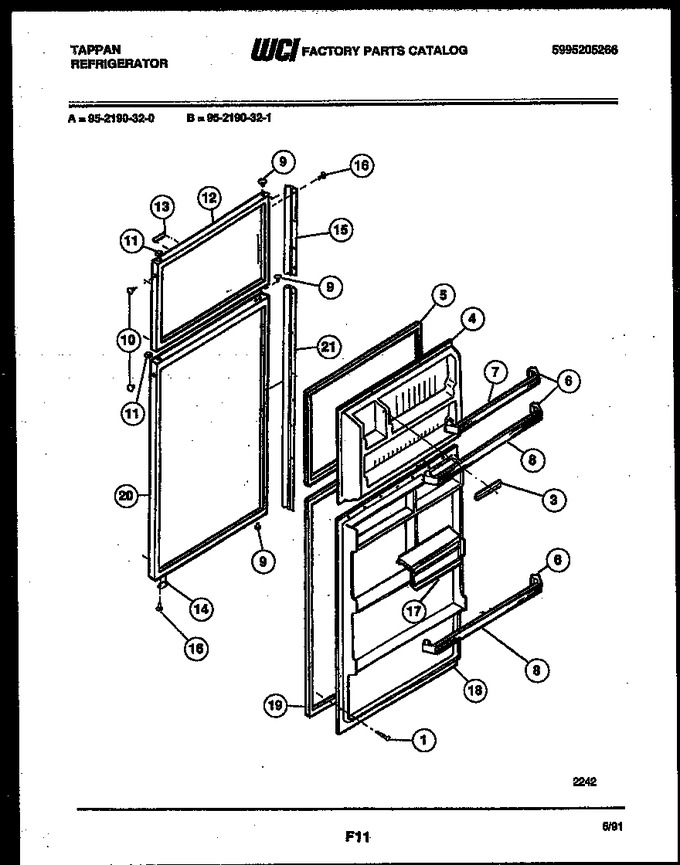

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308002748		Screw		Appelez-nous	-
3	3203047		Juice Can Dispenser		Appelez-nous	-
4	3204596		Panel-inner Fzr Door		Appelez-nous	-
5	5303272393		Gasket-freezer-black				$ 95.45
6	5317828701		Support Door Rack Rh (4)				$ 8.18
7	5303272394		Freezer Door Rack-upper		Appelez-nous	-
8	5303272395		Freezer/ref Door Rack (3)		Appelez-nous	-
9	5303272396		Button Plug-black (3)		Appelez-nous	-
10	5303272397		Button Plug-black		Appelez-nous	-
11	5308012007		Bearing, Hinge (8)		Appelez-nous	-
12	5303269855		Pnl-ext Freezer-black		Appelez-nous	-
13	5303272398		Nameplate Assy		Appelez-nous	-
14	5303212491		Door Stop-refrig		Appelez-nous	-
15	5303272400		Handle-freezer		Appelez-nous	-
16	5303272401		Screw 10-24 (8)		Appelez-nous	-
17	5303272402		Diary-door (2)		Appelez-nous	-
18	3203485		Pnl-inner Ref Door		Appelez-nous	-
19	5303272403		Gasket-ref-black		Appelez-nous	-
20	5303269856		Pnl-ext Ref-black		Appelez-nous	-
21	5303272404		Handle-refrig		Appelez-nous	-
*50987	5303007739		Insulation, Bulk		Appelez-nous	-
14A	5303272399		Door Stop-freezer		Appelez-nous	-
1A	5308011745		Screw				$ 10.38
6A	5317828401		Support Door Rack Lh (4)				$ 11.48
