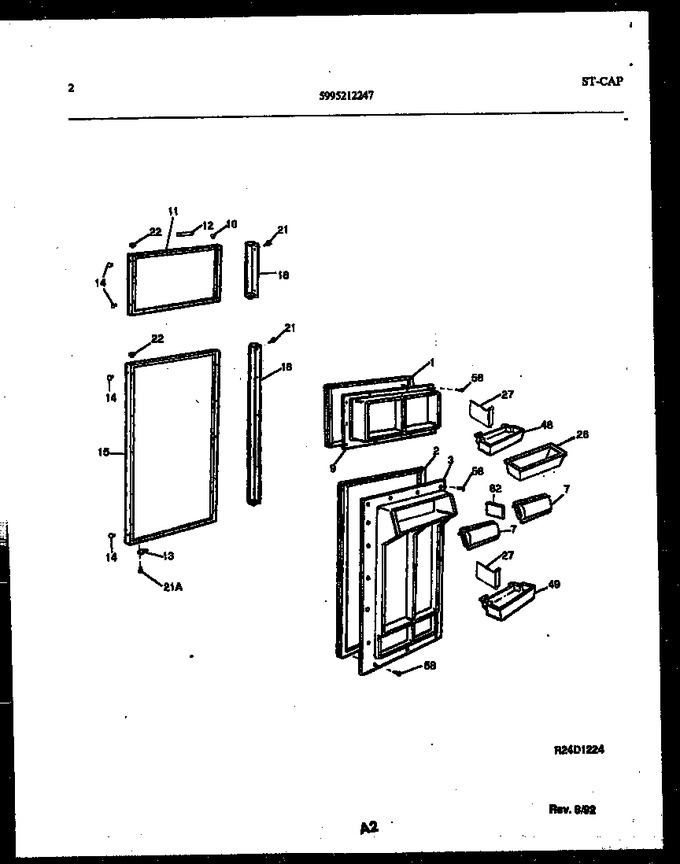

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272393 | Gasket-frzr Door, Magnetic |
|
$ 95.45 | |||||
| 2 | 5303272403 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303275674 | Panel-inner Door, Refr |
|
- | |||||
| 7 | 5303280855 | Door-dairy, (2) |
|
- | |||||
| 9 | 5303275724 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303272397 | Plug-button, Black, Hinge Brg Hole |
|
- | |||||
| 11 | 5303269855 | Panel-frzr Door, Black |
|
- | |||||
| 12 | 5303272398 | Nameplate Assy |
|
- | |||||
| 13 | 5303272399 | Door Stop, Frzr |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5303272396 | Plug-button, Black, Handle/dr Stop |
|
- | |||||
| 15 | 5303279404 | Panel-refr Door, Black |
|
- | |||||
| 18 | 5303272404 | Handle-door, Refr |
|
- | |||||
| 18 | 5303272400 | Handle-door, Frzr |
|
- | |||||
| 21 | 5303276869 | Screw-handle Mtg, Cr Oval Hd, 10-24(d) X 5/8, Black, (6 |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 26 | 5303272408 | Container-egg |
|
- | |||||
| 27 | 5303275732 | Snugger-door Rack |
|
- | |||||
| 27 | 5303279906 | Snugger-door Rack, (2) |
|
- | |||||
| 48 | 5303280853 | Bin-door, 2 Liter, (6) |
|
- | |||||
| 49 | 5303280842 | Bin-door, Gallon, (2) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 62 | 5303275673 | Divider-dairy |
|
- | |||||
| *60768 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 15A | 5303275660 | Brace, Cross (non Illustrated) |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 7A | 5308017047 | Nut, Self Threading, 1/8 (non-illustrated) |
|
- |
