SELECT A DIAGRAM

01 - Cover

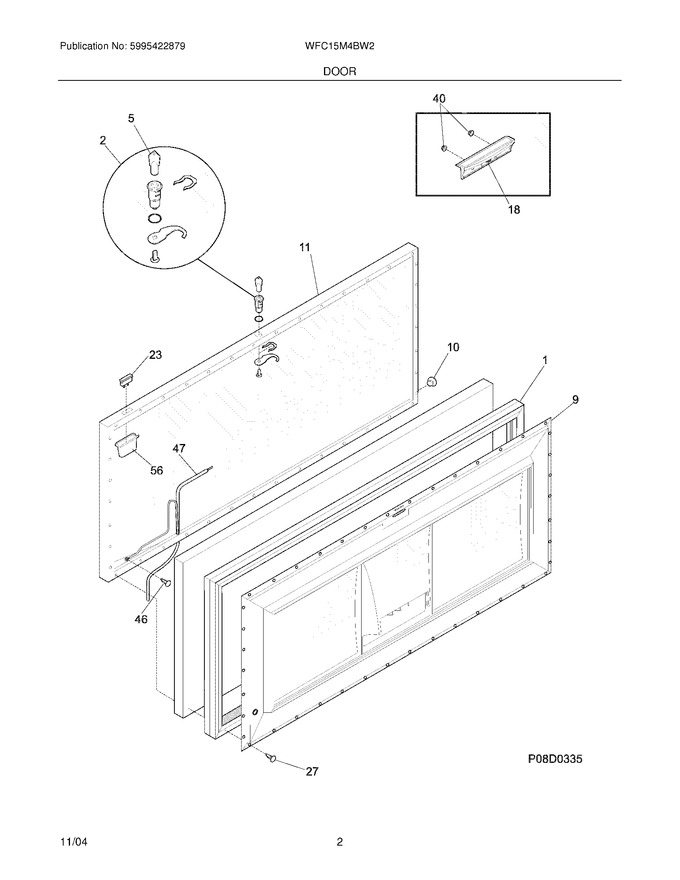

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket-door, White   (Replaces: 216481201)				$ 204.03
2	5303925107		Lock Assy		Appelez-nous	-
9	216057804		Panel-inner Lid, White				$ 140.44
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216129930		Lid,white				$ 280.25
18	216205001		Handle, White		Appelez-nous	-
23	5308002706		Light-signal,amber				$ 39.11
27	5303212828		Clip,panel Mtg				$ 16.63
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
46	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
56	216694200		Cap,sig Light Seal		Appelez-nous	-
F47	216808600		Harness-lid		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
