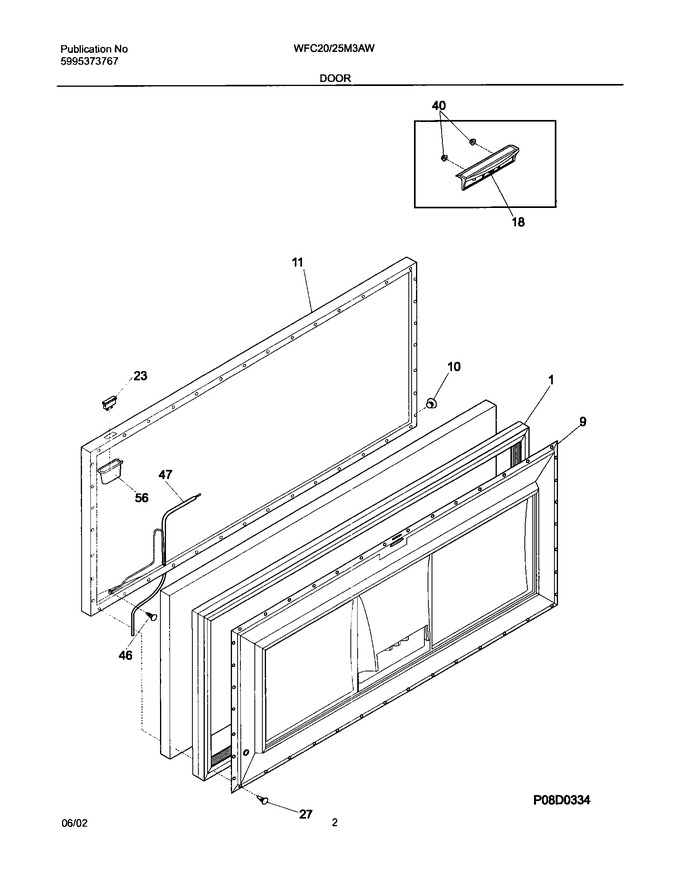

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481401		Gasket-door, White				$ 165.32
9	216059606		Panel-inner Door,frzr		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216130117		Lid,white		Appelez-nous	-
18	216205000		Handle, White				$ 32.78
23	5308002706		Light-signal,amber				$ 39.11
27	5303212828		Clip,panel				$ 16.63
40	5309948647		Fastener, Handle		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
56	216694200		Sealing Cap		Appelez-nous	-
F47	216808600		Harness-lid		Appelez-nous	-
NI	5303917276		Insulation				$ 330.91
