SELECT A DIAGRAM

01 - Cover

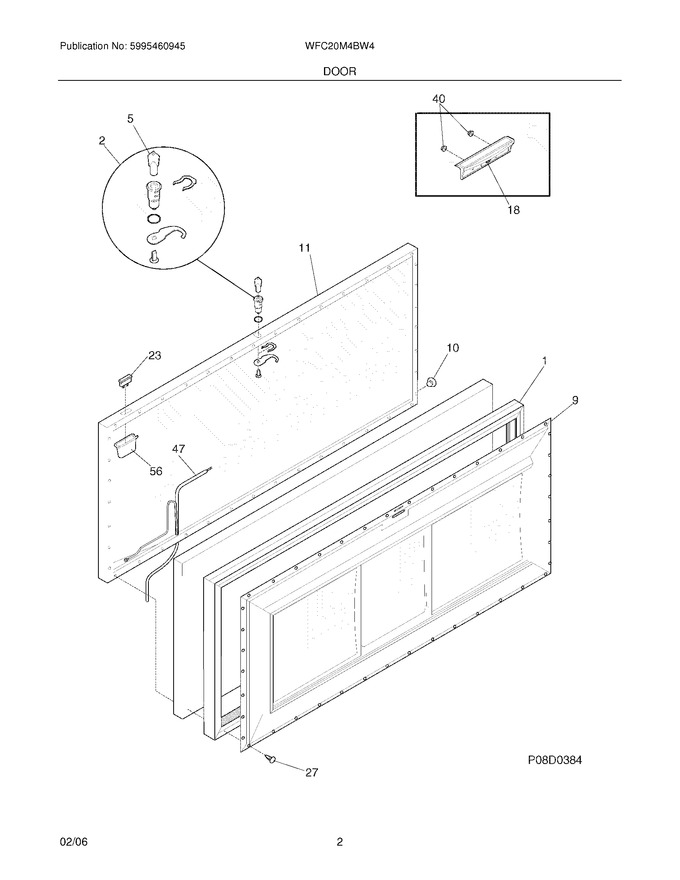

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481401		Gasket,lid Seal ,white				$ 165.32
2	5303925107		Lock Assy		Appelez-nous	-
9	216059604		Panel-inner Lid, White				$ 121.17
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216130119		Lid,white		Appelez-nous	-
18	216205001		Handle, White		Appelez-nous	-
23	5308002706		Light-signal,amber				$ 39.11
27	5303212828		Clip,panel Mtg				$ 16.63
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
47	216823700		Harness-lid/defrost				$ 62.21
56	297015600		Cap,sig Light Seal		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	216858000		Screw,thno.8-18x.500ab,no.10		Appelez-nous	-
NI	5300114366		Washer-sealing		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
