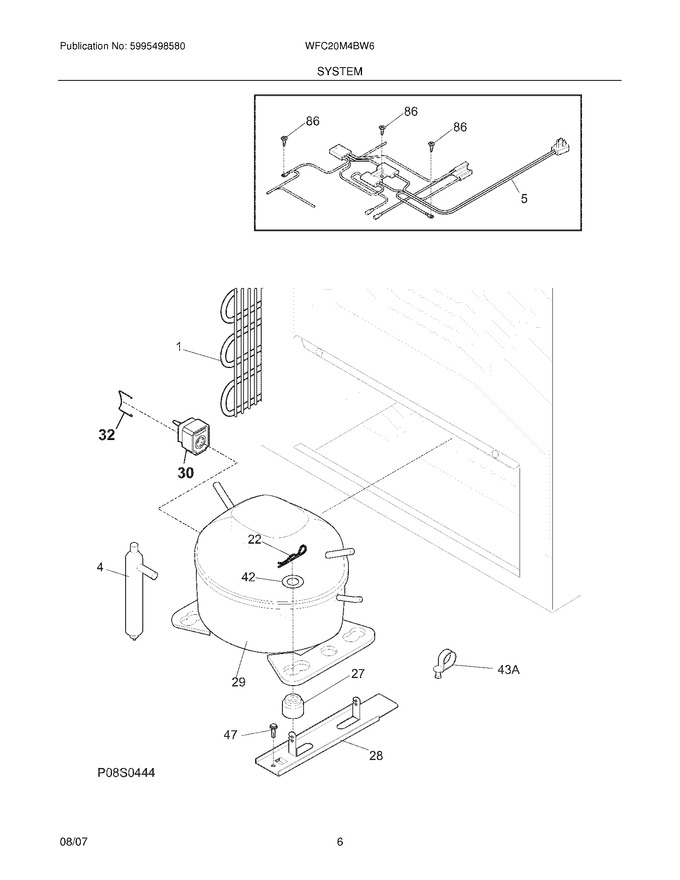

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	216987500		Drier-filter		Appelez-nous	-
22	242037701		Clip-compressor Mtg   (Replaces: 216056401)				$ 2.84
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5303212615		Support, Compressor		Appelez-nous	-
30	297051001		Controller,compressor				$ 41.69
32	297051100		Clamp,elec Cont Mtg ,compressor		Appelez-nous	-
42	216232700		Washer,flat ,1``od X 0.531``id		Appelez-nous	-
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
43A	5303212614		Clip,harness Mount				$ 2.88
F1	5303280307		Condenser				$ 640.71
F29	5304478809		Compressor,w/grommets ,w/o Electricals   (Replaces: 297068201)			Immediately	$ 584.96
F5	216987300		Harness-main		Appelez-nous	-
NI	297102800		Spacer-tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
