SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

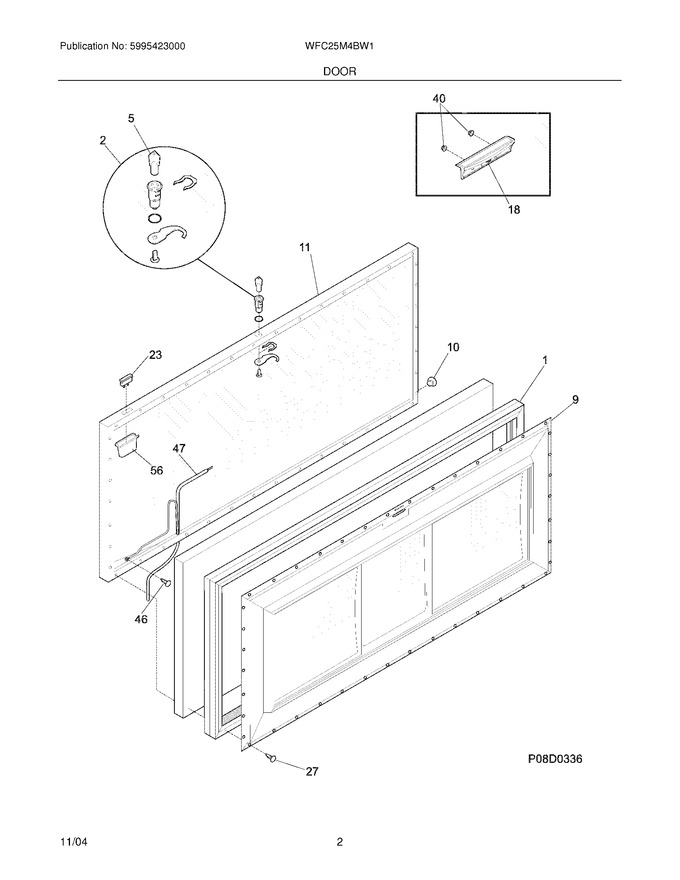

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216469311		Gasket-door, White   (Replaces: 216469301)				$ 187.21
2	5303925107		Lock Assy		Appelez-nous	-
9	216910701		Panel-inner Lid,white				$ 248.80
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216032420		Lid,white				$ 292.48
18	216205001		Handle, White		Appelez-nous	-
23	5308002706		Light-signal,amber				$ 39.11
27	5303212828		Clip,panel Mtg				$ 16.63
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
56	216694200		Cap,sig Light Seal		Appelez-nous	-
F47	216808600		Harness-lid		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
