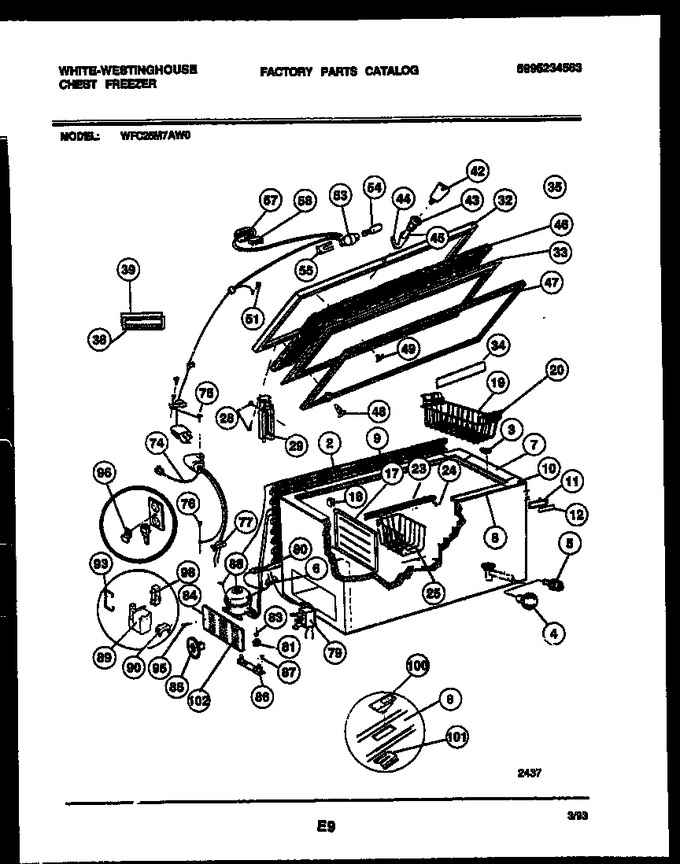

02 - Chest Freezer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5300300173		Condenser (not Original Equipment-service Replacement On		Appelez-nous	-
3	216208300		Plug-drain Liner		Appelez-nous	-
4	5300128045		Plug-drain Shell		Appelez-nous	-
5	06594053		Adapter, Hose		Appelez-nous	-
6	08016808		Grommet		Appelez-nous	-
7	216110803		Breaker Ends		Appelez-nous	-
8	216112003		Breaker Front		Appelez-nous	-
9	216111403		Breaker Rear		Appelez-nous	-
10	216110703		Breakercorners		Appelez-nous	-
11	5303288341		Frame		Appelez-nous	-
12	3201002		Nameplate		Appelez-nous	-
17	216128200		Divider-drain Pan		Appelez-nous	-
18	5306594584		Supports Divider				$ 19.80
19	216080600		Basket (2)				$ 95.29
20	5303019003		Handle-gray		Appelez-nous	-
23	216205100		Track-basket		Appelez-nous	-
24	216858001		Screw-track   (Replaces: 5303161215)			Immediately	$ 10.85
25	216080700		Basket-lower (2)				$ 84.70
28	5309950602		Screw Hinge				$ 5.30
29	216035400		Hinge		Appelez-nous	-
32	216032406		Lid-panel-white		Appelez-nous	-
33	216072504		Panel-inner Lid		Appelez-nous	-
34	3019006		Light Shield		Appelez-nous	-
35	216141101		Plug				$ 2.57
38	216140203		Handle-gray		Appelez-nous	-
39	08009392		Gasket		Appelez-nous	-
42	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
43	5303925107		Lock-complete		Appelez-nous	-
44	5300300791		Hook		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	5300128901		Insulation Lid		Appelez-nous	-
47	216085603		Gasket Lid-gray		Appelez-nous	-
48	5303212828		Clip Panel (51)				$ 16.63
49	5309948955		Clip-panel W/sig Light				$ 11.53
50	216040800		Wire Harnes Lid		Appelez-nous	-
51	530316215		Screw-ground Wire		Appelez-nous	-
53	216039700		Socket-light		Appelez-nous	-
54	5304517886		Bulb-120v 25w   (Replaces: 216222700)			Immediately	$ 73.06
55	5306599968		Retainer Socket		Appelez-nous	-
57	5308037857		Cap-signal Light		Appelez-nous	-
58	5308002706		Signal Light				$ 39.11
74	216089500		Wiring Harn W/ Pwr Cord		Appelez-nous	-
75	08009412		Screw		Appelez-nous	-
76	08009412		Screw		Appelez-nous	-
77	5303212614		Clip Wires				$ 2.88
79	5304496560		Control Temp   (Replaces: 5303212610)				$ 49.62
80	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
81	215175000		Grommet Compr (4)		Appelez-nous	-
83	216056400		Clip Compr (4)		Appelez-nous	-
84	216022700		Access Panel		Appelez-nous	-
85	216034505		Knob-control		Appelez-nous	-
86	5303212615		Support Compr (2)		Appelez-nous	-
87	08016776		Screw-support (2)		Appelez-nous	-
88	5303291913		Compressor		Appelez-nous	-
89	216008900		Relay		Appelez-nous	-
90	5308037789		Overload		Appelez-nous	-
93	215012000		Clamp, Cover				$ 2.63
95	216858001		Screw-access Panel   (Replaces: 5303161215)			Immediately	$ 10.85
96	08016777		Retainer-power Cord (not Original Equipment-customer Pur		Appelez-nous	-
98	5303289028		Run Capacitor		Appelez-nous	-
100	5303210240		Latch		Appelez-nous	-
101	216080800		Support-latch		Appelez-nous	-
102	5303208663		Plug-indicator		Appelez-nous	-
