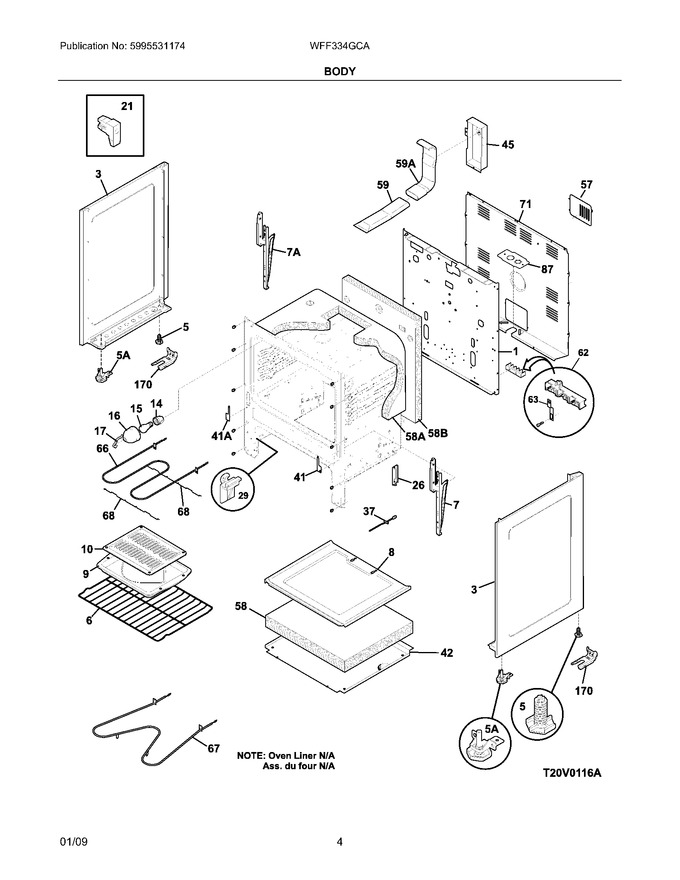

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316201300		Back,main		Appelez-nous	-
3	316400128		Panel,bodyside ,black ,rh		Appelez-nous	-
3	316400129		Panel,bodyside ,black ,lh		Appelez-nous	-
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316067902		Rack,oven ,(2)			Immediately	$ 103.10
7	316566206		Hinge,oven Door ,rh   (Replaces: 316216506)				$ 79.43
8	316495903		Panel,,oven Bottom				$ 108.68
9	316081902		Pan,broiler ,slate Blue				$ 83.42
10	316082002		Insert,broiler Pan ,slate Blue				$ 81.14
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	316539001		Lamp,oven Light				$ 33.18
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	316408000		Clip,bodyside				$ 18.20
26	316206300		Support,chassis ,(2)				$ 19.72
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
42	316547400		Shield,wool ,lower				$ 87.18
45	316234100		Shield,wire ,vent Tube				$ 70.16
57	316457801		Cover,access				$ 12.89
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316208201		Tube,oven Vent ,lower				$ 77.26
63	316542600		Plate,grounding Strap		Appelez-nous	-
67	316075103		Element,bake   (Replaces: 316075104)			Immediately	$ 42.36
68	316203400		Support,broil Element				$ 70.88
71	316422304		Shield,rear Wall				$ 115.53
87	316081200		Bracket,cable Mtg		Appelez-nous	-
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
58A	316047707		Insulation, 1`` ,oven Wrapper				$ 150.92
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59
59A	316208304		Tube,oven Vent ,upper				$ 80.09
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
7A	316566207		Hinge,oven Door ,lh   (Replaces: 316216507)				$ 69.32
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F170	316541700		Template,anti-tip		Appelez-nous	-
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F37	316233903		Probe-oven Temp   (Replaces: 316233900)			Immediately	$ 57.29
F62	5303935271		Terminal Block Kit				$ 73.56
F66	316203200		Element-broil			Immediately	$ 164.45
FNI	316460502		Wiring Harness,main		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316248900		Spacer,shield ,rear Wall		Appelez-nous	-
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 15.22
NI	316210800		Plug,button				$ 10.63
NI	316444100		Plate-weight,(3)		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
