Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 216011201 Panel-door-white Appelez-nous -
2 216140203 Handle-door-gray Appelez-nous -
5 5303288341 Nameplate Appelez-nous -
6 08009392 Gasket Handle Appelez-nous -
7 3201002 Insert Nameplate Appelez-nous -
22 216048416 Panel-inner-white Appelez-nous -
23 09950831 Insulation Appelez-nous -
28 216102500 Shelf Front-wire (4) Appelez-nous -
39 5303210403 Bearing, Bottom Appelez-nous -
40 5303297490 Bearing, Top Appelez-nous -
41 5300091170 Reinforcement, Door Stop Appelez-nous -
42 08016354 Stop-door Special Order $ 36.07

43 08005520 Screw-door Stop Appelez-nous -
48 5309950074 Valve Breather (2) Special Order $ 12.48

49 5303212700 Air Duct Breather Appelez-nous -
50 5303007739 Insulation, Door Appelez-nous -
51 08037981 Wire Adjusting (2) Appelez-nous -
52 05879859 Bracket Appelez-nous -
53 5300057906 Screw, Bracket (2) Appelez-nous -
54 09950839 Washer, Bracket (2) Appelez-nous -
55 3206236 Gasket Door-gray Special Order $ 239.56

56 216858001 Screw-panel (20)   (Replaces: 5303161215) In-Stock Immediately $ 10.85

57 216022800 Screw-panel (16) Appelez-nous -
58 5308016356 Gasket-white Appelez-nous -
59 5303212828 Clip-gasket (4) Special Order $ 16.63


    View Diagram in Separate Window     Print Icon   Print Part List

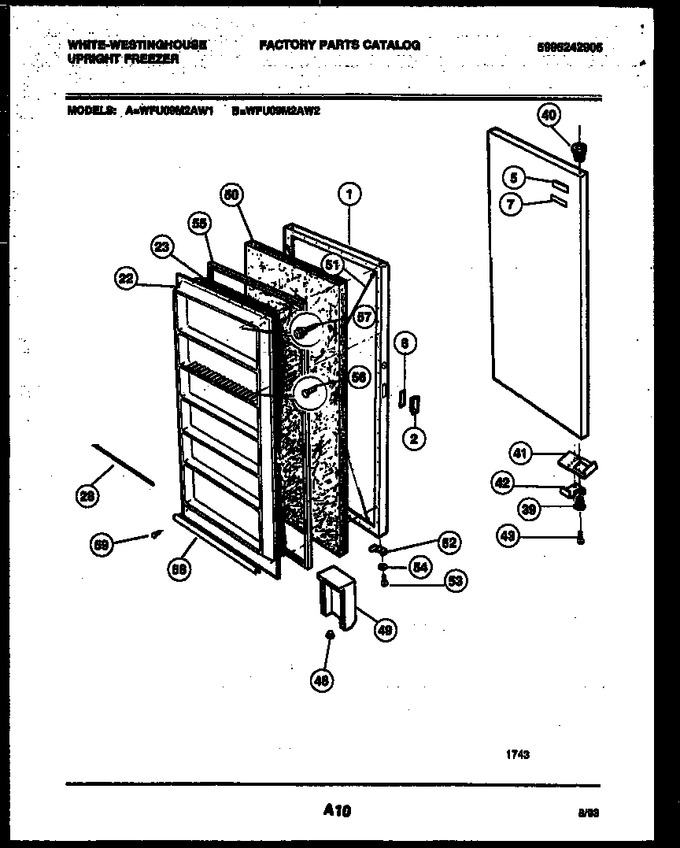

Diagram for WFU09M2AW2
