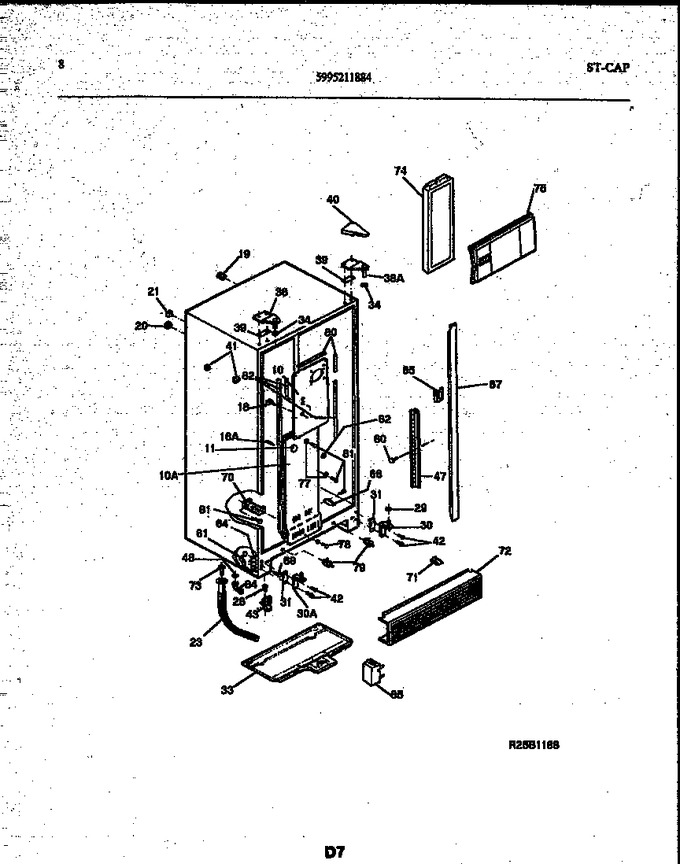

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 47 | 5308002744 | Channel-shelf Mtg, Side, (2) |
|
- | |||||
| 48 | 5308000200 | Nut, 7/16 X 20, Nylon |
|
- | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| 61 | 5300077210 | Nut, Stud Speed, .094, (2) |
|
- | |||||
| 62 | 5303001231 | Clip-grounding |
|
- | |||||
| 64 | 5303001273 | Nut-special Twin (4) |
|
- | |||||
| 65 | 5303001281 | Clip-mullion Mtg, (3) |
|
- | |||||
| 65 | 5300169100 | Clip-mullion Mtg, (3) (non-illustrated) |
|
- | |||||
| 66 | 5316491203 | Damper, Meat Keeper |
|
- | |||||
| 67 | 5303916444 | Mullion-white |
|
- | |||||
| 68 | 5308000013 | Pin, Shoulder, 3/32 X 5/8, (2) |
|
- | |||||
| 70 | 5308000738 | Bracket-cover Mtg |
|
- | |||||
| 71 | 5308000847 | Clip-grille |
|
$ 5.39 | |||||
| 72 | 5303208904 | Grille/kickplate |
|
$ 88.52 | |||||
| 73 | 5308000853 | Conductor-heat |
|
- | |||||
| 74 | 3001177 | Shield-light, Freezer |
|
- | |||||
| 75 | 5303279812 | Shield-light, Refrigerator |
|
- | |||||
| 77 | 5303001216 | Washer-nylon,3/16 X 5/8 Od |
|
- | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 79 | 5309918810 | Switch-light |
|
- | |||||
| 80 | 5303001219 | Gasket-coil Cover (2) |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 82 | 5303001233 | Gasket Kit, Coil Cover |
|
- | |||||
| 84 | 5308010289 | Elbow-water Tube |
|
$ 45.84 | |||||
| 85 | 5317465801 | Cover-lower Hinge |
|
- | |||||
| *63701 | 5308010293 | Nut-btm Hinge Cvr, Push-in |
|
- | |||||
| *63701 | 5308010292 | Screw-btm Hinge Cvr, Lr Pan Head, 10-12 A 5/8 |
|
- | |||||
| *63702 | 5308017046 | Clip-wiring Harness |
|
- | |||||
| 78A | 5308009617 | Washer, Ext Tooth Lock, No. 10 (non-illustrated) |
|
- | |||||
| 79A | 08009775 | Clip-cable, Light Switch (non-illustrated) |
|
- |
