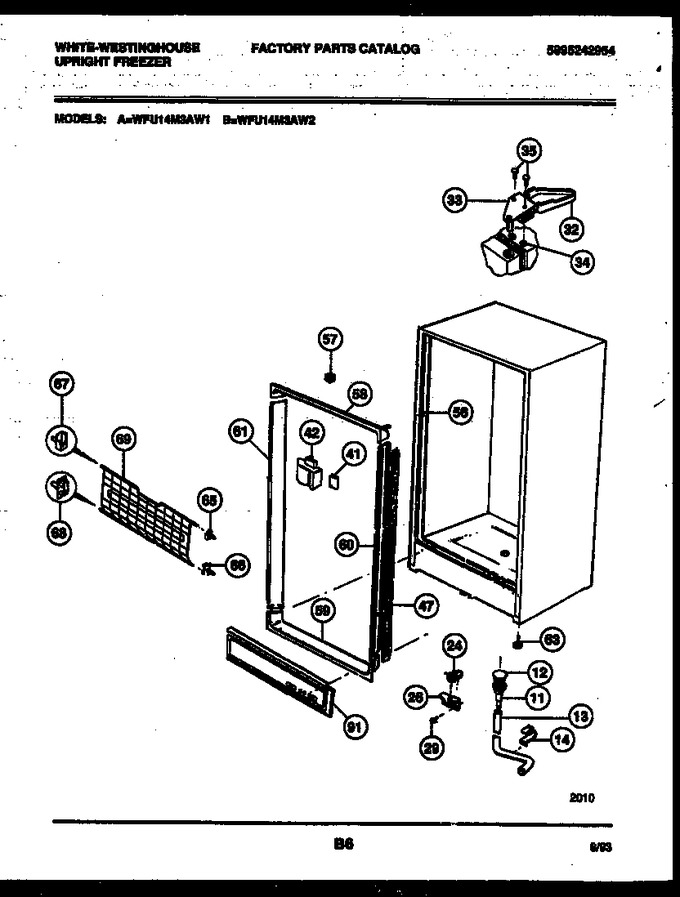

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	5306593887		Plug-drain		Appelez-nous	-
13	5308037944		Hose Drain		Appelez-nous	-
14	06593405		Clamp		Appelez-nous	-
24	5303210424		Ramp, Door Closer		Appelez-nous	-
26	5303210383		Hinge, Bottom		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	5303212912		Cover, Hinge-white		Appelez-nous	-
33	5303212935		Hinge, Top		Appelez-nous	-
34	5303294372		Nut Insert				$ 43.68
35	5303212937		Screw-top Hinge		Appelez-nous	-
41	216013700		Clip Lock		Appelez-nous	-
42	216013600		Support, Lock		Appelez-nous	-
47	09950831		Insulation		Appelez-nous	-
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037401		Retainer (2)				$ 2.85
58	216073300		Breaker Top		Appelez-nous	-
59	216073200		Breaker Bottom		Appelez-nous	-
60	216108600		Breaker-hinge		Appelez-nous	-
61	216108700		Breaker, Lock Side		Appelez-nous	-
63	216218100		Leveling Leg (4)				$ 25.25
65	06599973		Support, Top Rh				$ 6.49
66	06599975		Support, Bottom Rh				$ 5.99
67	06599974		Support, Top Lh		Appelez-nous	-
68	06599976		Support, Bottom Lh		Appelez-nous	-
69	216098100		Drop Front		Appelez-nous	-
13A	5303294374		Adaptor-hose (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
