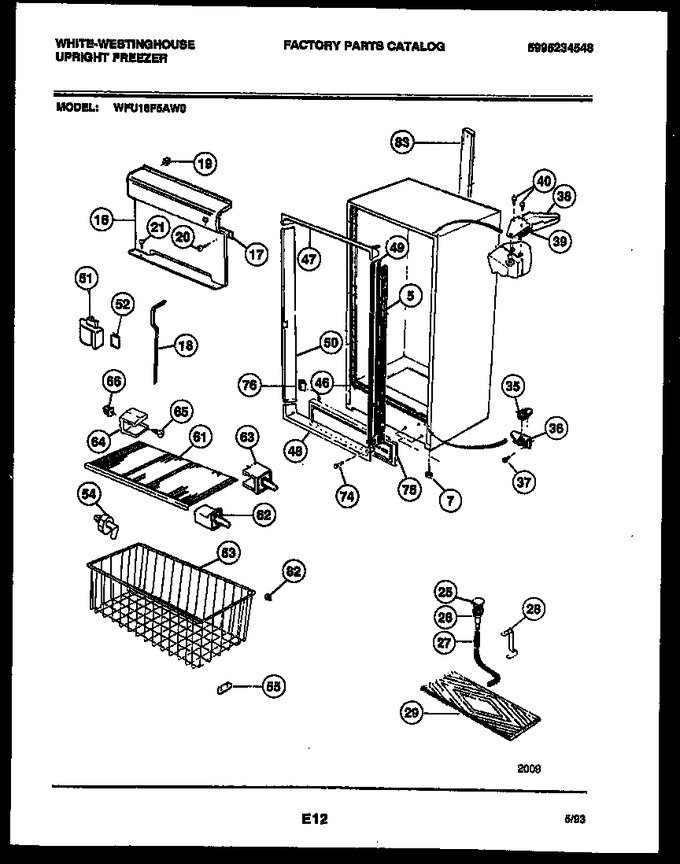

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 09950831 | Insulation |
|
- | |||||
| 7 | 216218100 | Leveler (4) |
|
$ 25.25 | |||||
| 16 | 216084100 | Cover |
|
- | |||||
| 17 | 06599547 | Spacer |
|
- | |||||
| 18 | 06599551 | Gasket |
|
- | |||||
| 19 | 09948978 | Nut (6) |
|
- | |||||
| 20 | 3161215 | Screw - (6) |
|
- | |||||
| 21 | 216036600 | Screw (3) |
|
- | |||||
| 25 | 216503100 | Screen (Replaces: 5308037403) |
|
$ 62.17 | |||||
| 26 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 27 | 08037416 | Tube |
|
- | |||||
| 28 | 06594637 | Clip |
|
- | |||||
| 29 | 5308016387 | Pan |
|
- | |||||
| 35 | 5303210424 | Ramp, Door Closer |
|
- | |||||
| 36 | 5303210383 | Hinge, Bottom |
|
- | |||||
| 37 | 154518001 | Screw-hinge (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 38 | 5303212912 | Cover, Hinge-white |
|
- | |||||
| 39 | 5303925086 | Hinge, Top |
|
- | |||||
| 40 | 5303212937 | Screw-hinge |
|
- | |||||
| 46 | 06594680 | Clip, Breaker |
|
- | |||||
| 47 | 216085900 | Breaker, Top |
|
- | |||||
| 48 | 216085800 | Breaker-btm |
|
- | |||||
| 49 | 216108801 | Breaker-hinge |
|
- | |||||
| 50 | 216108901 | Breaker, Lock Side |
|
- | |||||
| 51 | 216013600 | Support, Lock |
|
- | |||||
| 52 | 216013700 | Clip Lock |
|
- | |||||
| 53 | 08010201 | Basket |
|
- | |||||
| 54 | 09948791 | Stop, Basket |
|
- | |||||
| 55 | 08009560 | Glide (4) |
|
$ 35.25 | |||||
| 61 | 08037964 | Shelf-upper (3) |
|
- | |||||
| 62 | 5306594706 | Peg-front Rh (5) |
|
- | |||||
| 63 | 06594584 | Support |
|
- | |||||
| 64 | 5306594585 | Support, Rear (2) |
|
- | |||||
| 65 | 08005520 | Screw-door Stop |
|
- | |||||
| 66 | 06594537 | Insert, Nut |
|
- | |||||
| 74 | 5309950066 | Pin (2) |
|
- | |||||
| 75 | 3200983 | Toe Grille |
|
- | |||||
| 76 | 5300118003 | Bumper |
|
- | |||||
| 82 | 5305878546 | Bumper |
|
$ 7.23 | |||||
| 83 | 216009000 | Cover-wire |
|
- | |||||
| 55A | 3201008 | Front-basket (non-illustrated) |
|
- | |||||
| 55B | 09950862 | End Cap |
|
- | |||||
| 61A | 216077100 | Shelf-lower (3) |
|
- | |||||
| 62A | 5306594707 | Peg-front Lh (5) |
|
- |
