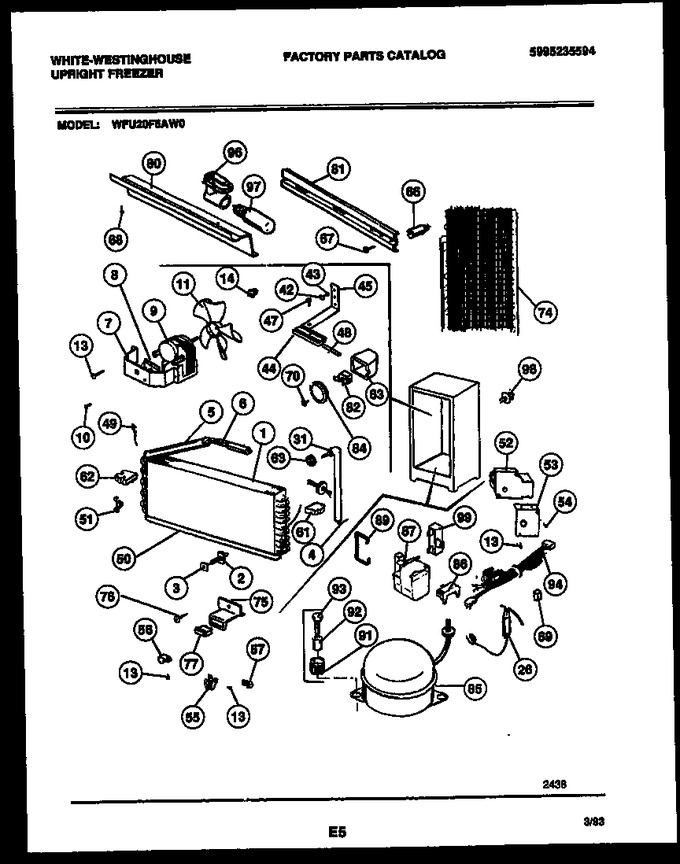

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216195900		Evaporator				$ 246.91
2	06599544		Support, Evaporator		Appelez-nous	-
3	08013198		Spacer (2)		Appelez-nous	-
4	5303272332		Heat Exchanger		Appelez-nous	-
5	216502500		Sleeve   (Replaces: 5303207297)				$ 10.85
5	09950831		Insulation		Appelez-nous	-
6	5303208489		Sleeve (2)		Appelez-nous	-
7	08013207		Bracket				$ 12.92
7	216218100		Leveler (4)				$ 25.25
8	5300164002		Gasket		Appelez-nous	-
9	3205519		Fan Motor		Appelez-nous	-
10	06594542		Screw		Appelez-nous	-
11	3205520		Fan Blade		Appelez-nous	-
13	216858001		Screw (4)   (Replaces: 5303161215)			Immediately	$ 10.85
14	09948978		Nut (2)		Appelez-nous	-
16	216084200		Cover-evap		Appelez-nous	-
17	06599547		Spacer		Appelez-nous	-
18	216204901		Gasket (2)				$ 9.08
19	301036		Nut   (Replaces: 3017666)				$ 15.90
20	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
21	3161233		Screw		Appelez-nous	-
25	216503100		Screen   (Replaces: 5308037403)				$ 62.17
26	08000027		Filter		Appelez-nous	-
26	08005500		Sleeve		Appelez-nous	-
27	08037416		Hose, Drain		Appelez-nous	-
28	06594637		Clip		Appelez-nous	-
29	5308016387		Pan		Appelez-nous	-
31	09948773		Insulation				$ 12.60
35	5303210424		Ramp, Door Closer		Appelez-nous	-
36	5303210383		Hinge, Bottom		Appelez-nous	-
37	154518001		Screw-hinge Bottom   (Replaces: 5303205738)				$ 10.54
38	5303212912		Cover, Hinge-white		Appelez-nous	-
39	5303212935		Hinge, Top		Appelez-nous	-
40	5303212937		Screw-hinge		Appelez-nous	-
41	5303294372		Nut Insert				$ 43.68
42	08009412		Screw		Appelez-nous	-
43	5300095480		Washer		Appelez-nous	-
44	05878562		Clamp		Appelez-nous	-
45	06594601		Bracket, Control				$ 17.64
46	06594680		Clip, Breaker		Appelez-nous	-
47	5300052943		Screw				$ 5.30
47	216085900		Breaker, Top		Appelez-nous	-
48	216085800		Breaker, Bottom		Appelez-nous	-
48	08037932		Sleeve		Appelez-nous	-
49	216107501		Breaker Hinge		Appelez-nous	-
49	5303016814		Switch, Termination		Appelez-nous	-
50	216107601		Breaker, Lock Side		Appelez-nous	-
50	5306599535		Heater		Appelez-nous	-
51	06599536		Clip, Heater		Appelez-nous	-
51	216013600		Support		Appelez-nous	-
52	5308037967		Timer		Appelez-nous	-
52	216013700		Clip Lock		Appelez-nous	-
53	08016580		Bracket		Appelez-nous	-
53	216076700		Basket		Appelez-nous	-
54	08037849		Screw (2)				$ 8.98
54	09948791		Stop, Basket		Appelez-nous	-
55	3017718		Clamp		Appelez-nous	-
55	08009560		Glide (4)				$ 35.25
56	5303212614		Clamp				$ 2.88
57	09950610		Clip		Appelez-nous	-
61	06599531		Air Seal, Rh		Appelez-nous	-
61	216077101		Shelf-upper (3)		Appelez-nous	-
62	5306594706		Support, Front, Rh (5)		Appelez-nous	-
62	3017674		Air Seal, Lh		Appelez-nous	-
63	06594629		Grommet		Appelez-nous	-
63	5306594584		Support-rear (6)				$ 19.80
64	5306594585		Support-rear (4)		Appelez-nous	-
65	08005520		Screw-door Stop		Appelez-nous	-
66	08000456		Spacer Baffle Plate		Appelez-nous	-
66	06594537		Insert, Nut		Appelez-nous	-
67	3161215		Screw Baffle Plate		Appelez-nous	-
68	5303283898		Light Screw-shield		Appelez-nous	-
69	08037401		Retainer Harness				$ 2.85
70	09950853		Screw, Knob		Appelez-nous	-
74	5309950066		Pin (2)		Appelez-nous	-
74	530083897		Condenser (not Original Equipment--service Replacement O		Appelez-nous	-
75	3200983		Toe Grille		Appelez-nous	-
75	216009101		Bracket		Appelez-nous	-
76	08037851		Screw				$ 3.57
76	5300118003		Bumper		Appelez-nous	-
77	06594648		Signal Light, Amber		Appelez-nous	-
80	08037418		Shield, Light		Appelez-nous	-
81	3200989		Baffle		Appelez-nous	-
82	05878546		Spacer, Condenser		Appelez-nous	-
82	216216000		Control, Temperature		Appelez-nous	-
83	5306599543		Cover		Appelez-nous	-
84	216008801		Knob		Appelez-nous	-
85	216110300		Compressor		Appelez-nous	-
86	216110400		Overload		Appelez-nous	-
87	216008900		Relay		Appelez-nous	-
89	215012000		Clamp				$ 2.63
91	216498900		Grommet (4)   (Replaces: 5308002681)				$ 13.01
92	5306594529		Sleeve (3)				$ 10.34
93	5303272328		Screw (3)				$ 10.34
94	216165900		Harness		Appelez-nous	-
96	5300136117		Socket				$ 52.46
97	5303091423		Bulb		Appelez-nous	-
98	5309918806		Switch, Light			Immediately	$ 21.97
99	5303289028		Capacitor-run		Appelez-nous	-
*74165	5300083897		Condenser				$ 538.37
*74165	216009000		Cover, Wiring		Appelez-nous	-
61A	216077100		Shelf-lower (2)		Appelez-nous	-
62A	5306594707		Support, Front, Lh (5)		Appelez-nous	-
