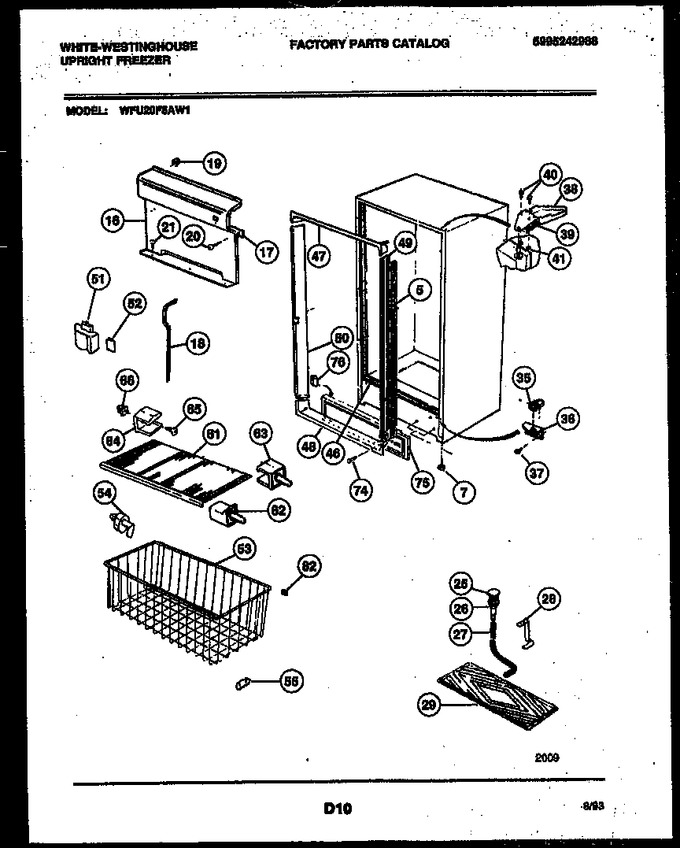

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 09950831 | Insulation |
|
- | |||||
| 7 | 216218100 | Leveler (4) |
|
$ 25.25 | |||||
| 16 | 216084200 | Cover-evap |
|
- | |||||
| 17 | 06599547 | Spacer |
|
- | |||||
| 18 | 216204901 | Gasket (2) |
|
$ 9.08 | |||||
| 19 | 301036 | Nut (Replaces: 3017666) |
|
$ 15.90 | |||||
| 20 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 21 | 3161233 | Screw |
|
- | |||||
| 25 | 216503100 | Screen (Replaces: 5308037403) |
|
$ 62.17 | |||||
| 26 | 08005500 | Sleeve |
|
- | |||||
| 27 | 08037416 | Hose, Drain |
|
- | |||||
| 28 | 06594637 | Clip |
|
- | |||||
| 29 | 5308016387 | Pan |
|
- | |||||
| 35 | 5303210424 | Ramp, Door Closer |
|
- | |||||
| 36 | 5303210383 | Hinge, Bottom |
|
- | |||||
| 37 | 154518001 | Screw-hinge Bottom (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 38 | 5303212912 | Cover, Hinge-white |
|
- | |||||
| 39 | 5303212935 | Hinge, Top |
|
- | |||||
| 40 | 5303212937 | Screw-hinge |
|
- | |||||
| 41 | 5303294372 | Nut Insert |
|
$ 43.68 | |||||
| 46 | 06594680 | Clip, Breaker |
|
- | |||||
| 47 | 216085900 | Breaker, Top |
|
- | |||||
| 48 | 216085800 | Breaker, Bottom |
|
- | |||||
| 49 | 216107501 | Breaker Hinge |
|
- | |||||
| 50 | 216107601 | Breaker, Lock Side |
|
- | |||||
| 51 | 216013600 | Support |
|
- | |||||
| 52 | 216013700 | Clip Lock |
|
- | |||||
| 53 | 216076700 | Basket |
|
- | |||||
| 54 | 09948791 | Stop, Basket |
|
- | |||||
| 55 | 08009560 | Glide (4) |
|
$ 35.25 | |||||
| 61 | 216077101 | Shelf-upper (3) |
|
- | |||||
| 62 | 5306594706 | Support, Front, Rh (5) |
|
- | |||||
| 63 | 5306594584 | Support-rear (6) |
|
$ 19.80 | |||||
| 64 | 5306594585 | Support-rear (4) |
|
- | |||||
| 65 | 08005520 | Screw-door Stop |
|
- | |||||
| 66 | 06594537 | Insert, Nut |
|
- | |||||
| 74 | 5309950066 | Pin (2) |
|
- | |||||
| 75 | 216250000 | Toe Grille |
|
- | |||||
| 76 | 5300118003 | Bumper |
|
- | |||||
| 82 | 05878546 | Spacer, Condenser |
|
- | |||||
| 61A | 216077100 | Shelf-lower (2) |
|
- | |||||
| 62A | 5306594707 | Support, Front, Lh (5) |
|
- |
