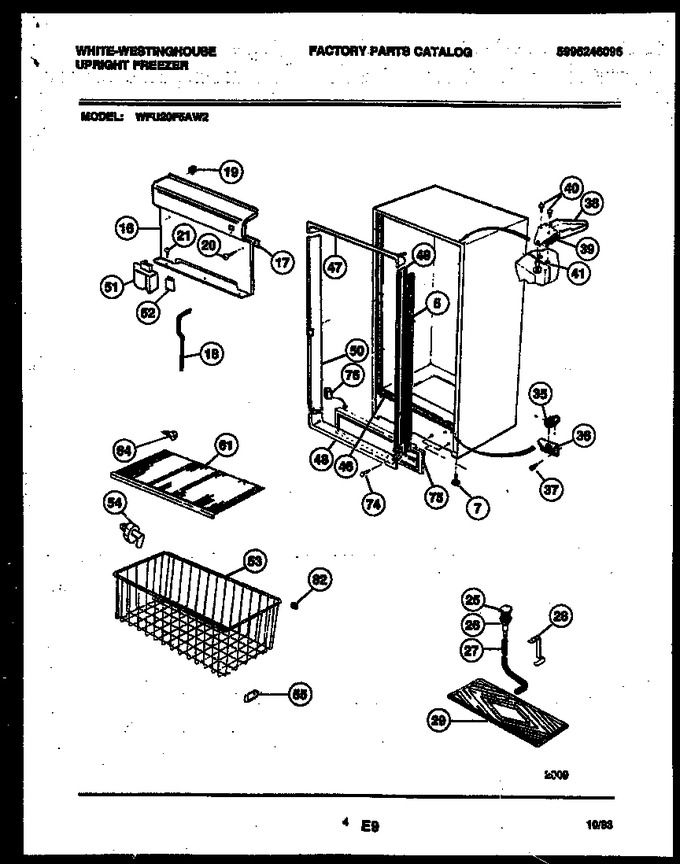

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	09950831		Insulation		Appelez-nous	-
7	216218100		Leveler (4)				$ 25.25
16	216084200		Cover-evap		Appelez-nous	-
17	06599547		Spacer		Appelez-nous	-
18	216204901		Gasket (2)				$ 9.08
19	301036		Nut   (Replaces: 3017666)				$ 15.90
20	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
21	3161233		Screw		Appelez-nous	-
25	216503100		Screen   (Replaces: 5308037403)				$ 62.17
26	08005500		Sleeve		Appelez-nous	-
27	08037416		Hose, Drain		Appelez-nous	-
28	06594637		Clip		Appelez-nous	-
29	5308016387		Pan		Appelez-nous	-
35	5303210424		Ramp, Door Closer		Appelez-nous	-
36	5303210383		Hinge, Bottom		Appelez-nous	-
37	154518001		Screw-hinge Bottom   (Replaces: 5303205738)				$ 10.54
38	5303212912		Cover, Hinge-white		Appelez-nous	-
39	5303212935		Hinge, Top		Appelez-nous	-
40	5303212937		Screw-hinge		Appelez-nous	-
41	5303294372		Nut Insert				$ 43.68
46	06594680		Clip, Breaker		Appelez-nous	-
47	216085900		Breaker, Top		Appelez-nous	-
48	216085800		Breaker, Bottom		Appelez-nous	-
49	216107501		Breaker Hinge		Appelez-nous	-
50	216107601		Breaker, Lock Side		Appelez-nous	-
51	216013600		Support		Appelez-nous	-
52	216013700		Clip Lock		Appelez-nous	-
53	216076700		Basket		Appelez-nous	-
54	09948791		Stop, Basket		Appelez-nous	-
55	08009560		Glide (4)				$ 35.25
61	216267001		Shelf-lower (2)		Appelez-nous	-
61	216266901		Shelf-upper (3)		Appelez-nous	-
64	216261100		Support-front & Rear (20)		Appelez-nous	-
74	5309950066		Pin (2)		Appelez-nous	-
75	216250000		Toe Grille		Appelez-nous	-
76	5300118003		Bumper		Appelez-nous	-
82	05878546		Spacer, Condenser		Appelez-nous	-
