SELECT A DIAGRAM

02 - Backguard


03 - Burner


05 - Body


06 - Top/drawer

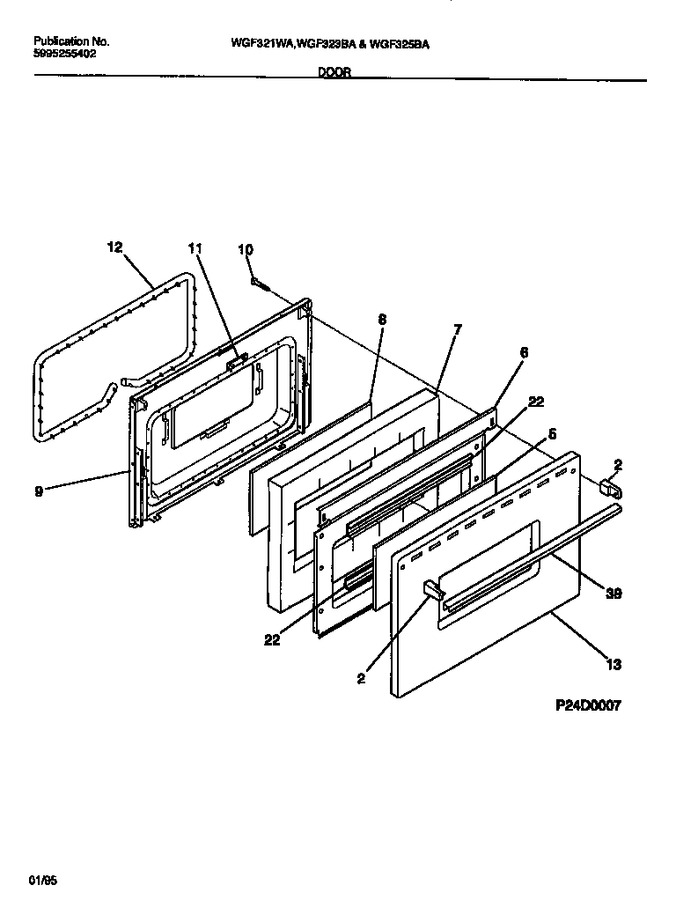

08 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3016755		End Cap, Black, (2)		Appelez-nous	-
5	316050300		Glass, Oven Door, White, Front		Appelez-nous	-
6	5303210608		Shield-insulation, Black		Appelez-nous	-
7	5303210607		Insulation, Oven Door		Appelez-nous	-
8	316050303		Glass-oven Door, Inner		Appelez-nous	-
9	31606603		Liner, Oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3017081		Panel, Oven Door, White		Appelez-nous	-
22	5303272476		Retainer,glass ,(2) ,angle		Appelez-nous	-
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
*87287	316071600		Plate Warning/caution		Appelez-nous	-
*87288	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
*87289	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*87290	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
