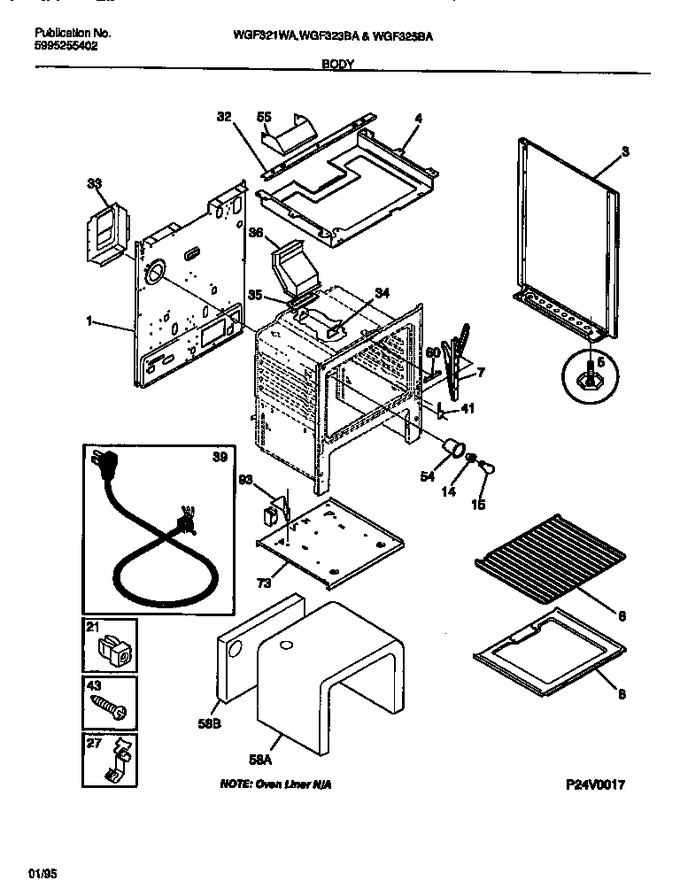

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029405		Back-main		Appelez-nous	-
3	5303269543		Panel-bodyside Rh (almond)		Appelez-nous	-
3	5303269545		Panel Bodyside Lh (almond)		Appelez-nous	-
4	316067201		Burner Box		Appelez-nous	-
5	5303288460		Nut, T-type, Leveling Screw (non-illustrated)				$ 27.14
5	316116000		Screw-anti-tip, (4) (non-illustrated)   (Replaces: 316078600)				$ 12.89
5	5303203397		Screw-leveling				$ 14.49
5	3934058		Anti-tip Kit (non-illustrated)				$ 98.75
6	5303281625		Rack Oven		Appelez-nous	-
7	316007001		Hinge,oven Door ,(2)				$ 234.55
8	316064600		Support-oven Bottom (non-illustrated)				$ 18.95
8	5303212540		Panel-oven Bottom		Appelez-nous	-
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
21	3014099		Spacer-bodyside, (8)				$ 3.62
27	5303284616		Clip-thermo Bulb				$ 9.86
32	3203441		Channel-burner Supt		Appelez-nous	-
33	316055601		Shield-spark Module		Appelez-nous	-
34	3018607		Cover Plate				$ 10.50
35	08067965		Gasket-flue		Appelez-nous	-
36	3131904		Flue		Appelez-nous	-
39	5304534377		Cord-electric Power (wiring Harnesses Are Not Available   (Replaces: 3202006)				$ 26.85
41	3131570		Cover Hinge Cutout				$ 7.35
43	316282700		Screw-oven Bottom, 8-18 X 1-7/16   (Replaces: 3131732)				$ 9.93
54	5303271606		Housing,oven Light		Appelez-nous	-
55	3203455		Shield, Flue Cover		Appelez-nous	-
55	3202799		Shield-flue, (non-illustrated)		Appelez-nous	-
60	5303015372		Cover-oven Front		Appelez-nous	-
73	5303281627		Base-broiler		Appelez-nous	-
93	316055501		Shield, Igntr Connector		Appelez-nous	-
*87282	5303280614		Shield - Flue Profile		Appelez-nous	-
*87285	5303305325		Touch-up Paint, Almond		Appelez-nous	-
58A	3017142		Insulation, Oven Wrapper				$ 193.50
58B	3203541		Insulation, Oven Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
