SELECT A DIAGRAM

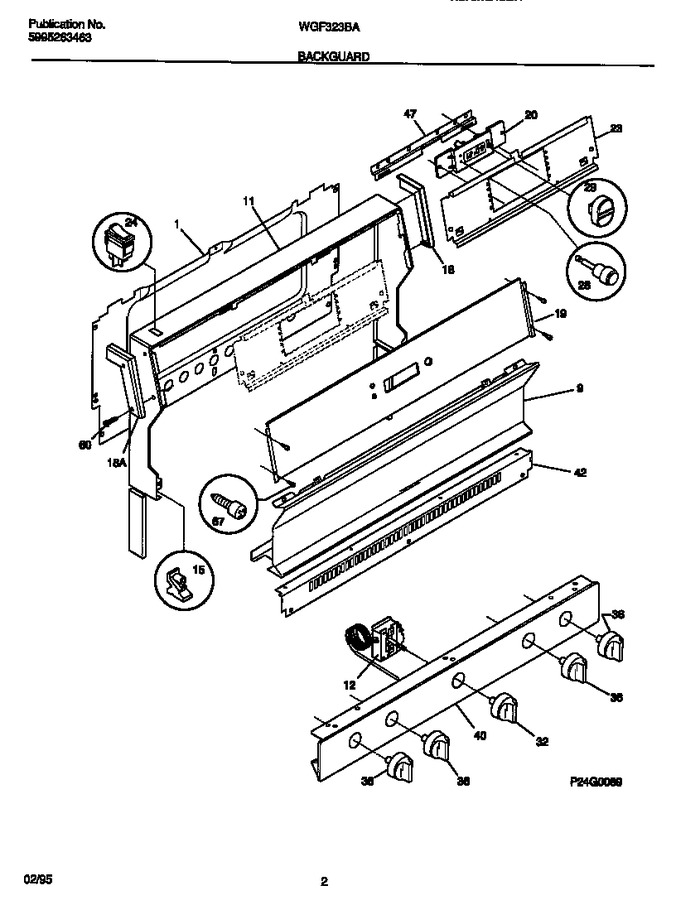

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028703		Shield-backguard, Rear Wall		Appelez-nous	-
9	316012502		Trim-splasher, Almond		Appelez-nous	-
11	316012405		Trim, Wrapper, Black		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
18	316013504		End Cap, Rh		Appelez-nous	-
19	316022838		Panel, Control, Metal		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
23	316022607		Bracket-clock Mtg		Appelez-nous	-
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
28	5303272306		Push Button, Clock Set, Black		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	316102300		Knob, Thermostat   (Replaces: 316009107)				$ 65.22
36	316009008		Knob-top Valve, (4)				$ 54.86
40	316062325		Panel, Manifold		Appelez-nous	-
42	3131241		Trim-vent		Appelez-nous	-
47	316022705		Retainer-timer-brkt		Appelez-nous	-
60	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
67	316003800		Screw, Control Pnl.		Appelez-nous	-
*13920	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*13921	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
12A	5303291898		Insulator-thermostat (not Illustrated)		Appelez-nous	-
18A	316013505		End Cap, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
