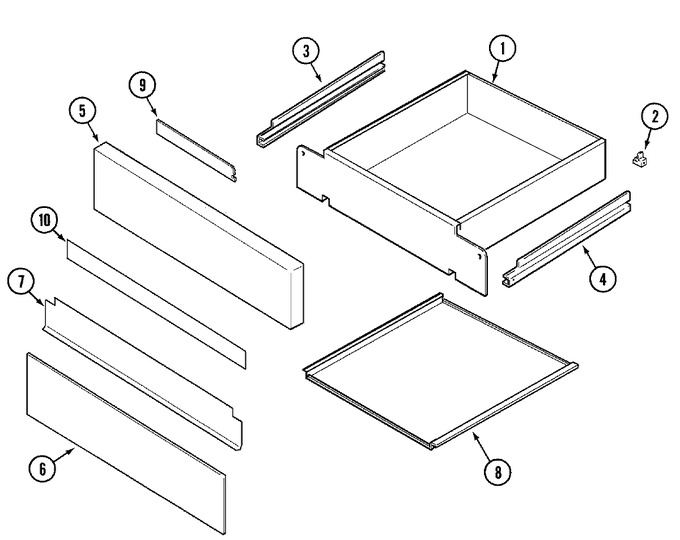

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002243 | Drawer | 01 |
|
- | ||||
| 2 | 71002245 | Guide, Drawer (front) | 01 |
|
- | ||||
| 2 | 71002244 | Guide, Drawer (rear) | 01 |
|
- | ||||
| 3 | 71002246 | Channel, Drawer (lt) | 01 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 4 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 4 | 71002247 | Channel, Drawer (rt) | 01 |
|
- | ||||
| 5 | 71002093 | Frame, Base Door (blk) | 01 |
|
- | ||||
| 6 | 71002095 | Panel, Front (blk) | 01 |
|
- | ||||
| 7 | 71002209 | Extrusion, Kick Panel (blk) | 01 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 7 | 71002248 | Bracket, Panel | 01 |
|
- | ||||
| 8 | 71002249 | Bottom, Inner Baffle | 01 |
|
- | ||||
| 9 | 71002091 | Tape, Dbl. Sided (blk) | 01 |
|
- | ||||
| 10 | 71002098 | Panel, Kick (blk) | 01 |
|
- |
