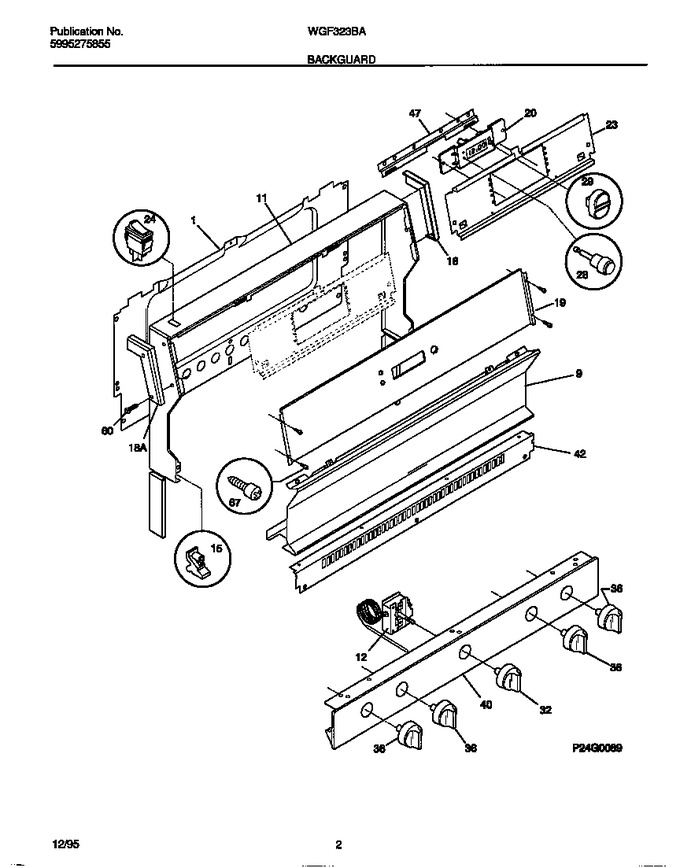

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028703		Shield-backguard, Rear Wall		Appelez-nous	-
9	316012501		Trim-splasher, White		Appelez-nous	-
11	316083706		Trim-wrapper		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
18	316013505		End Cap, Lh		Appelez-nous	-
18	316013504		End Cap, Rh		Appelez-nous	-
19	316022838		Panel, Control, Metal		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
23	316022607		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
28	5303272306		Push Button, Clock Set, Black		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	316102300		Knob, Thermostat   (Replaces: 316009107)				$ 65.22
36	316009008		Knob-top Valve, (4)				$ 54.86
40	316062325		Panel, Manifold		Appelez-nous	-
42	316084300		Trim-vent		Appelez-nous	-
47	316022705		Retainer-timer-brkt		Appelez-nous	-
60	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
67	316003800		Screw, Control Panel		Appelez-nous	-
*54440	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*54441	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*54442	5303293427		Screw, 6, 20 X 1/2, 5 Oval Head		Appelez-nous	-
12A	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
12B	5303291898		Insulator-thermostat (not Illustrated)		Appelez-nous	-
