01 - Blower Motor (convection)
02 - Blower Motor (cooling)
03 - Body
04 - Control Panel
05 - Door
06 - Drawer Assy.
07 - Internal Controls
08 - Oven Liner
09 - Top Assy.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

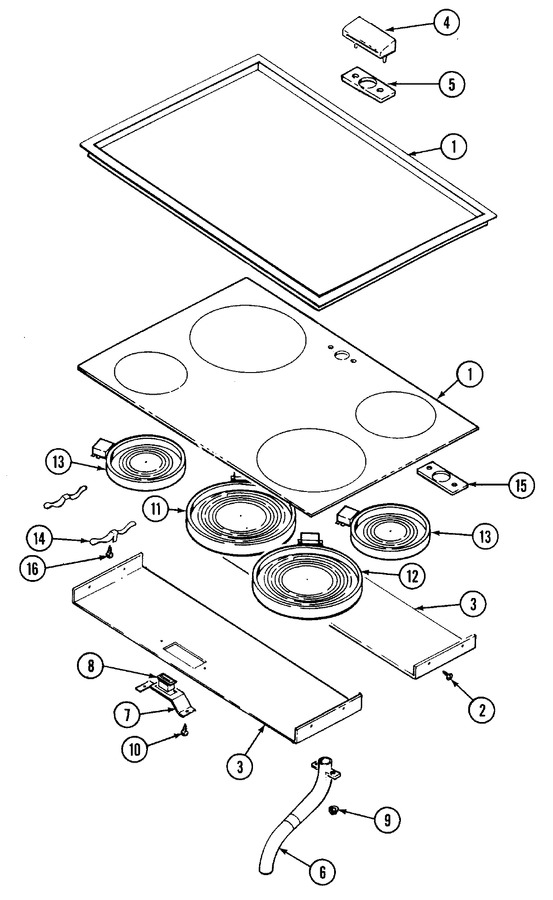

| 1 | 04100831 | Top Assy (white) | 11 |
|
- | ||||
| 2 | 71002058 | Screw, 8-32 (Replaces: Y04100363) | 11 |
|
$ 5.82 | ||||
| 3 | 04100475 | Rail, Element Support | 11 |
|
- | ||||
| 4 | Y04100311 | Trim, Vent (wht) | 11 |
|
- | ||||
| 5 | Y04100462 | Gasket | 11 |
|
- | ||||
| 6 | 04100461 | Vent Tube | 11 |
|
- | ||||
| 7 | 04100476 | Bracket, Mounting | 11 |
|
- | ||||
| 8 | Y04100477 | Light, Pilot | 11 |
|
- | ||||
| 9 | 7103P166-60 | Palnut (Replaces: 715500) | 11 |
|
$ 15.91 | ||||
| 10 | WP90767 | Screw (Replaces: 715773) | 11 |
|
Immediately | $ 7.04 | |||
| 11 | Y04100413 | Element, 2400w | 11 |
|
- | ||||
| 12 | W10823707 | Element, 2100w (Replaces: Y04100414) | 11 |
|
Immediately | $ 316.13 | |||
| 13 | W10823704 | Element, 1200w (Replaces: Y04100415) | 11 |
|
Immediately | $ 309.01 | |||
| 14 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 11 |
|
$ 10.51 | ||||
| 15 | Y04100478 | Spacer | 11 |
|
- | ||||
| 16 | 04100468 | Wire, Yellow | 11 |
|
- | ||||
| 16 | 04100467 | Wire, Violet | 11 |
|
- | ||||
| 16 | Y04100479 | Harness, Hotlight | 11 |
|
- |
