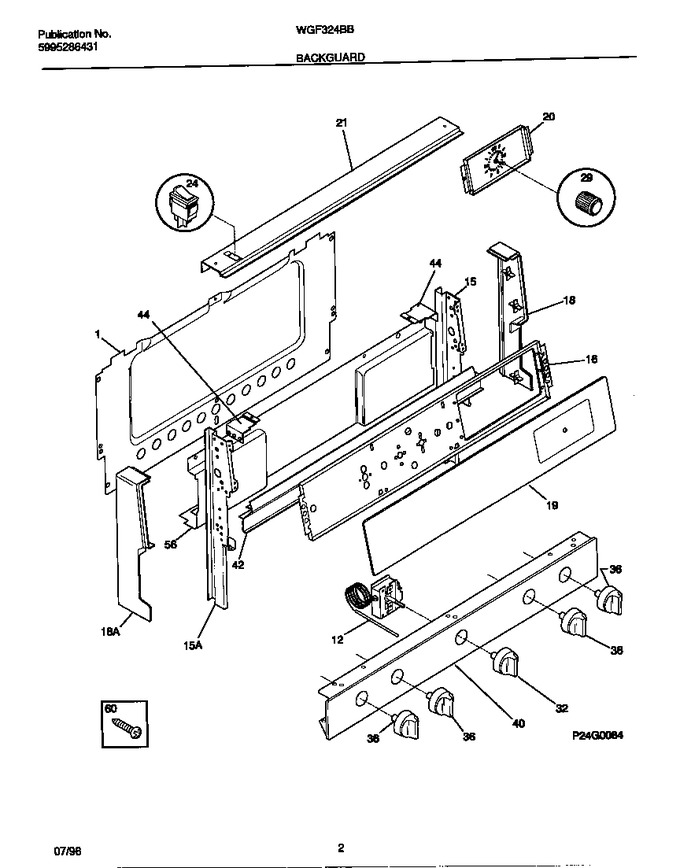

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
18	316021801		End Cap, Black, Lh				$ 94.29
18	316021800		End Cap, Black, Rh				$ 81.32
19	316028330		Panel-control, Glass		Appelez-nous	-
20	3204748		Clock/timer, Analog 1 Stem		Appelez-nous	-
21	5303283554		Trim - Canopy/shield, Black		Appelez-nous	-
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
29	316029008		Knob-clock				$ 40.16
32	316102300		Knob, Thermostat   (Replaces: 316009107)				$ 65.22
36	316009010		Knob, Top Valve, (4)				$ 60.43
40	316062353		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
60	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
*17640	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*17641	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*17642	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
