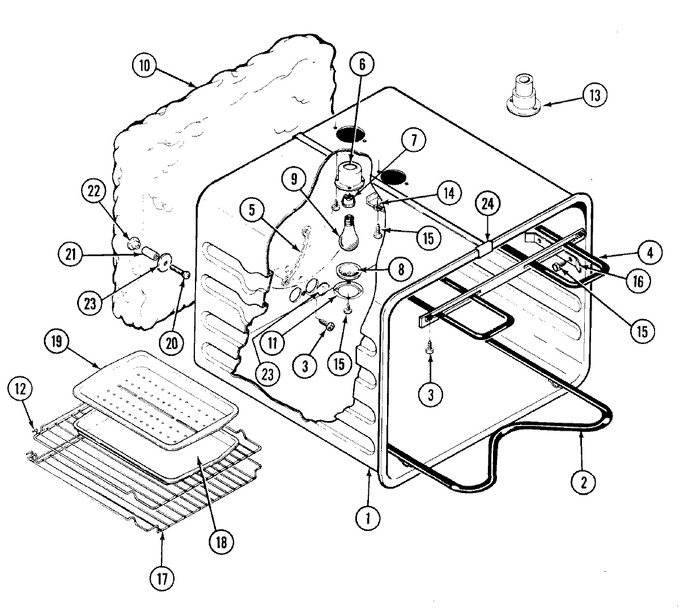

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	04100572		Oven Weld Assembly	11	Appelez-nous	-
1	71001403		Washer, Alum	14	Appelez-nous	-
1	WP7101P434-60		Screw   (Replaces: 71001394)	14			$ 6.26
1	71001490		Oven Weld Assy.	14	Appelez-nous	-
2	WPY04100021		Element, Bake   (Replaces: Y04100021)	11			$ 179.82
3	WP71001171		Screw, No.10/32 Torx   (Replaces: Y04100270)	11			$ 6.26
4	WPY04100514		Element, Broil   (Replaces: Y04100017)	11			$ 138.97
5	702643		Wire, Ground	11	Appelez-nous	-
6	704142		Receptacle, Holder	11	Appelez-nous	-
7	Y704145		Receptacle, Snap-in	11	Appelez-nous	-
8	Y704143		Lens, Light	11	Appelez-nous	-
9	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	11		Immediately	$ 16.80
10	702283		Insulation-back	11	Appelez-nous	-
10	702282		Insulation-sides,top,bottom	11	Appelez-nous	-
11	Y704144		Retainer, Lens	11	Appelez-nous	-
12	Y704660		Rack, Oven	11			$ 104.03
13	701738		Tube, Vent	11	Appelez-nous	-
14	Y702632		Shield, Vent	11	Appelez-nous	-
15	WP1163283		Screw   (Replaces: Y703741)	11			$ 6.47
16	Y701541		Clip, Bulb	11	Appelez-nous	-
17	Y704662		Rack, Oven (offset)	11	Appelez-nous	-
18	4396923		Pan, Broil   (Replaces: 703164)	11		Immediately	$ 52.04
19	4396923		Insert, Broil Pan   (Replaces: 703165)	11		Immediately	$ 52.04
20	705341		Screw	11	Appelez-nous	-
21	702745		Spacer	11	Appelez-nous	-
22	715294		Nut, Tee	11	Appelez-nous	-
23	801736		Washer, Flat	11	Appelez-nous	-
23	Y705342		Cover, Sensor Hole	11	Appelez-nous	-
24	WP210720		Rivet   (Replaces: 701662)	11			$ 12.14
24	Y702618		Clip, Oven	11	Appelez-nous	-
