SELECT A DIAGRAM

01 - Body


02 - Door/drawer


03 - Gas Controls


04 - Oven/base


05 - Top Assembly


06 - Wiring Information

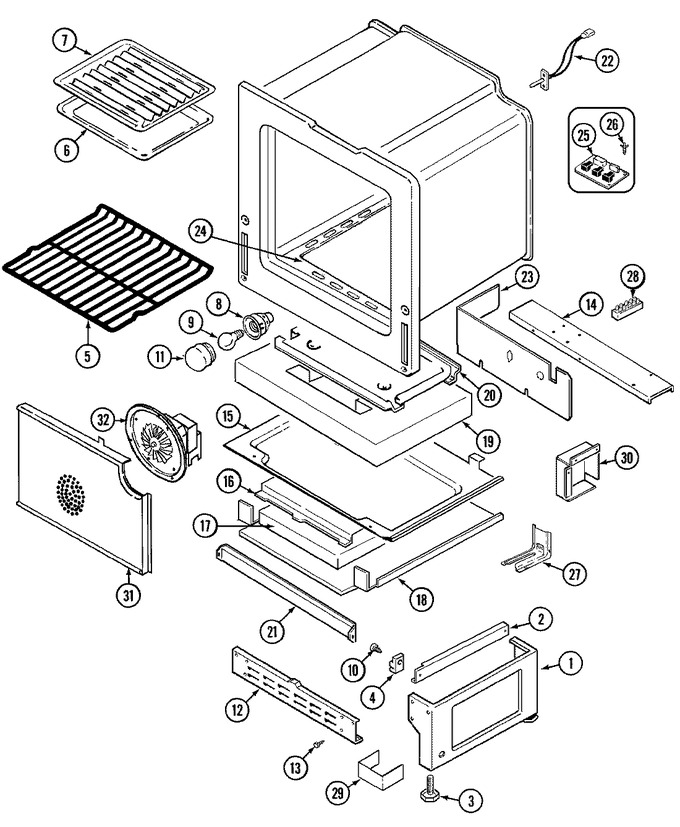

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4020W015-80		Pedestal, Sides	11	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
2	3406F028-51		Runner, Drawer	11	Appelez-nous	-
2	74003566		Roller, Drawer	24	Appelez-nous	-
2	74003565		Runner, Drawer	24	Appelez-nous	-
3	7101P316-60		Leg, Leveling	11	Appelez-nous	-
3	W11665456		Leg, Leveling   (Replaces: 74002557)	14		Immediately	$ 25.30
4	74002312		Support, Drawer	11			$ 27.09
5	WPW10282492		Rack, Oven   (Replaces: 74001757)	25		Immediately	$ 65.15
5	WPW10282492		Rack, Oven   (Replaces: 74002105)	11		Immediately	$ 65.15
6	Y3401F02019		Pan, Broil	11	Appelez-nous	-
7	Y3413F01619		Insert, Broil Pan	11	Appelez-nous	-
8	74003125		Receptacle, Bulb	20	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	20		Immediately	$ 12.62
8	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	11		Immediately	$ 66.10
9	8009		Bulb-oven   (Replaces: 7407P103-60)	11		Immediately	$ 16.80
10	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	11		Immediately	$ 6.98
11	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	11		Immediately	$ 71.93
12	4020F001-80		Pedestal, Front/rear	11	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
14	74002593		Support, Valve/regulator	11	Appelez-nous	-
15	3804F112-51		Retainer, Insulation	11	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
16	3604F204-51		Shield, Heat	11	Appelez-nous	-
17	7002P140-60		Insulation, Drawer & Shield	11	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
18	3604F205-51		Shield, Drawer	11	Appelez-nous	-
19	4804F014-60		Insulation, Oven Bottom	11	Appelez-nous	-
20	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
20	74001651		Pan, Bake Burner	11	Appelez-nous	-
21	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	11			$ 6.47
21	74001219		Baffle, Oven Front	11	Appelez-nous	-
22	12001655		Oven Sensor Kit (34)   (Replaces: W10127322)	11		Immediately	$ 41.01
22	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
23	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	11		Immediately	$ 12.62
23	4005F429-51		Cover, Valve	11	Appelez-nous	-
24	5504M004-19		Bottom, Oven Assy.	11	Appelez-nous	-
24	3601F239-45		Baffle, Oven Bottom	11	Appelez-nous	-
25	74002594		Board, Relay	11	Appelez-nous	-
26	8004P020-60		Support, Relay Board	11	Appelez-nous	-
26	74001813		Support, Relay	11	Appelez-nous	-
27	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	11		Immediately	$ 4.69
27	WP7101P485-60		Screw   (Replaces: 7101P344-60)	11			$ 26.33
28	7401P037-60		Block, Terminal	11	Appelez-nous	-
29	4005F420-80		Cover, Leveling Leg	11	Appelez-nous	-
30	3807F473-51		Support, Spark Module	11	Appelez-nous	-
31	74002943		Cover, Convect Fan	11	Appelez-nous	-
32	74003815		Fan Assy. (convect)	28	Appelez-nous	-
32	74002596		Fan Assy. (convect)	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
