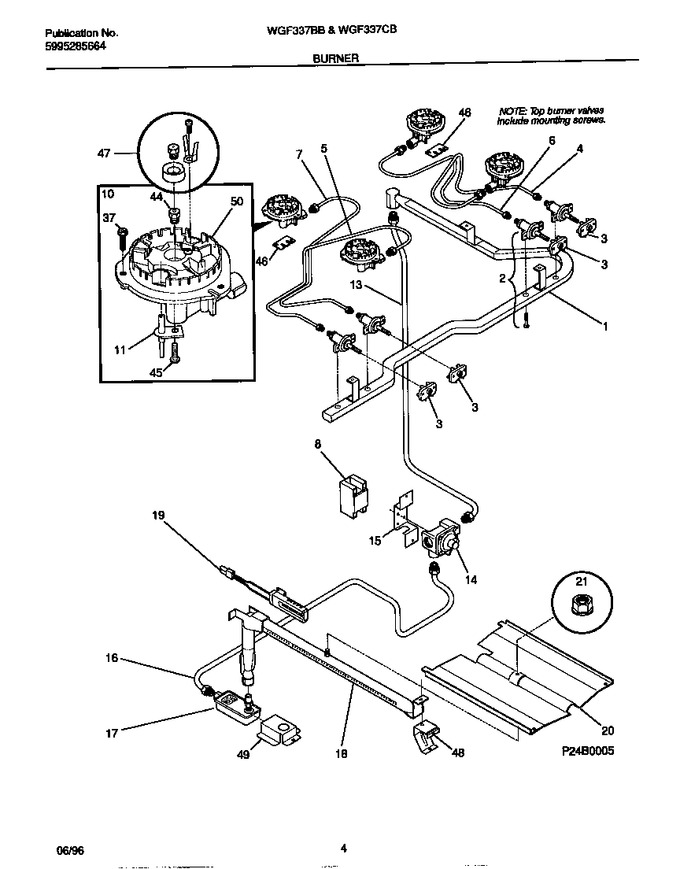

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316066201 | Manifold Pipe |
|
$ 65.47 | |||||
| 4 | 316059612 | Tube-burner, Red, Rf |
|
$ 88.25 | |||||
| 5 | 316059613 | Tube-burner, Green, Lf |
|
$ 87.16 | |||||
| 6 | 316059614 | Tube-burner, Nat., Rr |
|
$ 125.06 | |||||
| 7 | 316059615 | Tube-burner, Black, Lr |
|
$ 106.32 | |||||
| 10 | 5303935025 | Burner Assy-top, Sealed, Center, 9000 Btu, (4), Includes |
|
- | |||||
| 11 | 316011200 | Ignitor-top Burner, W/mtg Bracket |
|
Immediately | $ 38.68 | ||||
| 13 | 316065005 | Tube, Aluminum, Rgltr To Manf, With Fittings |
|
$ 91.51 | |||||
| 15 | 316091600 | Bracket-regulator |
|
$ 73.56 | |||||
| 16 | 316065006 | Tube-valve To Rgltr, 3/8 |
|
$ 122.09 | |||||
| 17 | 3203459 | Valve-safety |
|
$ 303.64 | |||||
| 18 | 3131439 | Burner-oven |
|
$ 204.59 | |||||
| 19 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 20 | 3203265 | Baffle,oven Burner |
|
- | |||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 37 | 316069301 | Screw-burner Mtg, Hex Washer Head, M3 X 0.50 (Replaces: 316069300) |
|
$ 2.99 | |||||
| 44 | 5303210090 | Orifice-top Burner, Small, (4) |
|
$ 54.18 | |||||
| 45 | 316011100 | Screw-igniter Mtg, Self-tapping, M3 X 5.8, (4) |
|
$ 3.41 | |||||
| 46 | 316074700 | Plate-burner Tube |
|
- | |||||
| 47 | 5303286386 | Lp-conversion Kit |
|
$ 143.29 | |||||
| 48 | 3018603 | Bracket,support ,oven Burner |
|
- | |||||
| 49 | 3131438 | Bracket, Safety Valve |
|
- | |||||
| 50 | 5303935026 | Burner-top, Small, (4), Includes 37 |
|
- | |||||
| 14A | 5304521339 | Regulator,pressure (Replaces: 316091706) |
|
Immediately | $ 105.42 | ||||
| 14B | 316021104 | Screw-regulator/brkt, Hex, 8-18 X 3/8, Nick, 3 (not Illustrated) |
|
$ 7.79 | |||||
| 2A | 316050600 | Valve, Top Burner, (4), With Mtg Screws |
|
- | |||||
| 2B | 316048200 | Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated) |
|
- | |||||
| 3A | 316032000 | Switch-igniter, (4) |
|
$ 58.70 | |||||
| 3B | 5303935040 | Switch Harness Terminal Kit (not-illustrated) |
|
$ 49.67 | |||||
| 8A | 5304505695 | Spark Module (Replaces: 5303280394) |
|
Immediately | $ 68.16 | ||||
| 8B | 5303289034 | Harness-wiring, Module/igniter (not Illustrated) |
|
$ 188.84 |
