SELECT A DIAGRAM

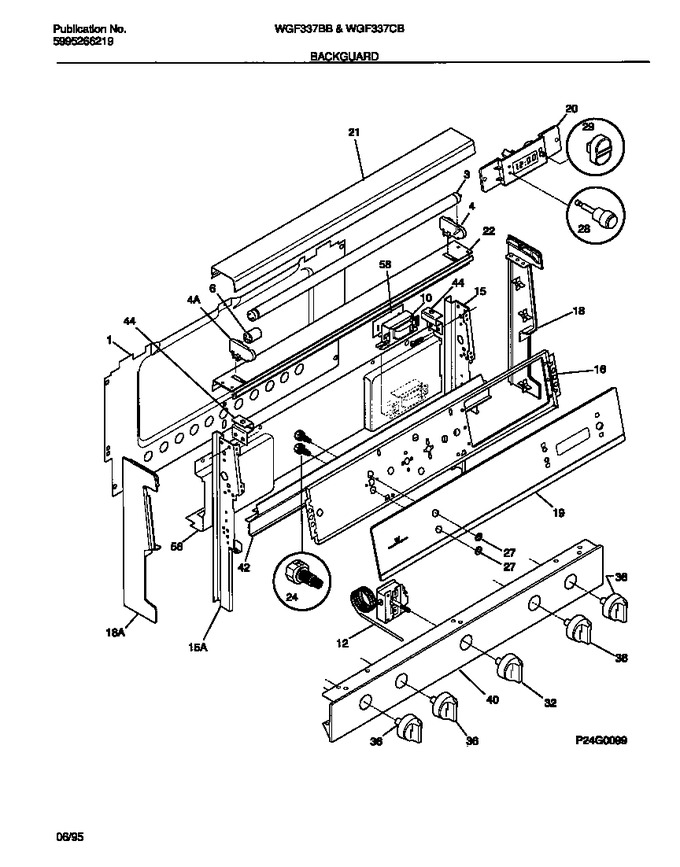

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	316008200		Receptacle-lamp, Rh		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	5303051115		Ballast-lamp		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023111		Support-backguard, Lh		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
18	316015401		End Cap, Lh		Appelez-nous	-
19	316028343		Panel-control, Glass		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
21	316015300		Trim-canopy/shield, Black		Appelez-nous	-
22	316038600		Support-receptacle		Appelez-nous	-
24	5303200479		Switch-oven Light, Push Button, (2)				$ 7.04
27	5303011507		Bezel-switch				$ 21.47
28	5303272306		Push Button, Clock Set, Black		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	316102300		Knob, Thermostat   (Replaces: 316009107)				$ 65.22
36	316009010		Knob, Top Valve, (4)				$ 60.43
40	316062324		Panel, Manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	316038501		Bracket-backguard, (2)		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
58	316043400		Insulator-ballast, (2)		Appelez-nous	-
15A	316023110		Support-backguard, Rh		Appelez-nous	-
18A	316015400		End Cap, Rh				$ 43.58
4A	316008201		Receptacle-lamp, Lh		Appelez-nous	-
NI	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
NI	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
NI	316001428		Harness-backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
