SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

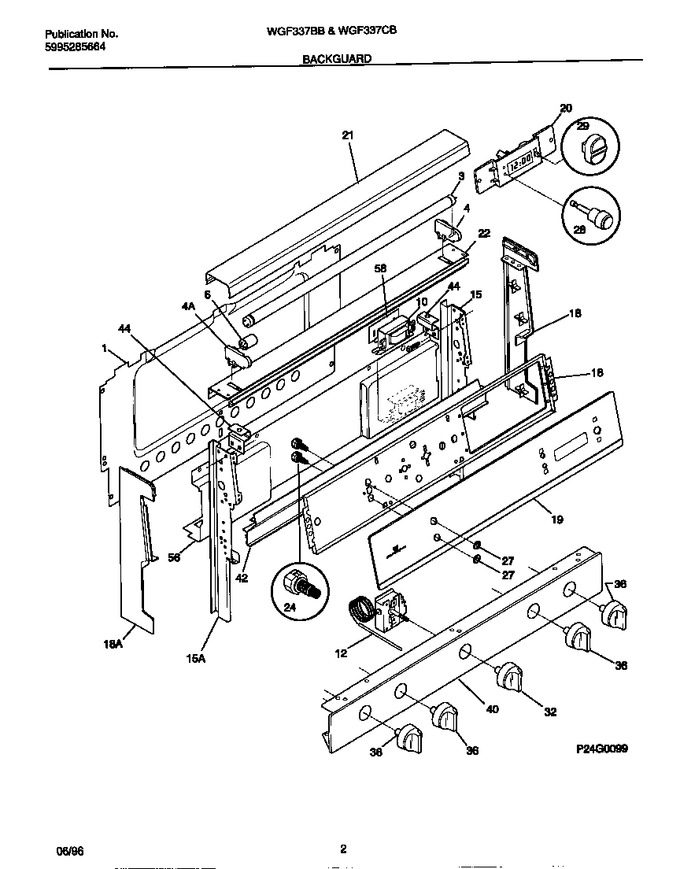

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	316008201		Receptacle-lamp, Lh		Appelez-nous	-
4	316008200		Receptacle-lamp, Rh		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	5303051115		Ballast-lamp		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
18	316015406		End Cap, White, Rh		Appelez-nous	-
18	316015407		End Cap, White, Lh				$ 101.85
19	316028344		Panel-control, Glass		Appelez-nous	-
20	316096000CP		Clock/timer   (Replaces: 316096000)		Appelez-nous	-
21	316015303		Trim, Backguard, White, Top		Appelez-nous	-
22	316038602		Extrusion-bkgd Pnl		Appelez-nous	-
24	316052401		Switch-light/lamp		Appelez-nous	-
27	316052301		Bezel-switch, White		Appelez-nous	-
28	316017303		Button-clock, White				$ 53.76
29	316028402		Button-selector, Clock/timer, White				$ 48.72
32	316102303		Knob-thermostat   (Replaces: 316009113)				$ 61.43
36	316009036		Knob-top Valve, (4)		Appelez-nous	-
40	316062354		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	316038501		Bracket-backguard, (2)		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
58	316043400		Insulator-ballast, (2)		Appelez-nous	-
*67400	316001428		Harness-backguard		Appelez-nous	-
*67401	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*67402	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*67403	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
16A	316042601		Plate,instrument Mtg		Appelez-nous	-
16B	316042610		Plate, Instrument Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
