SELECT A DIAGRAM

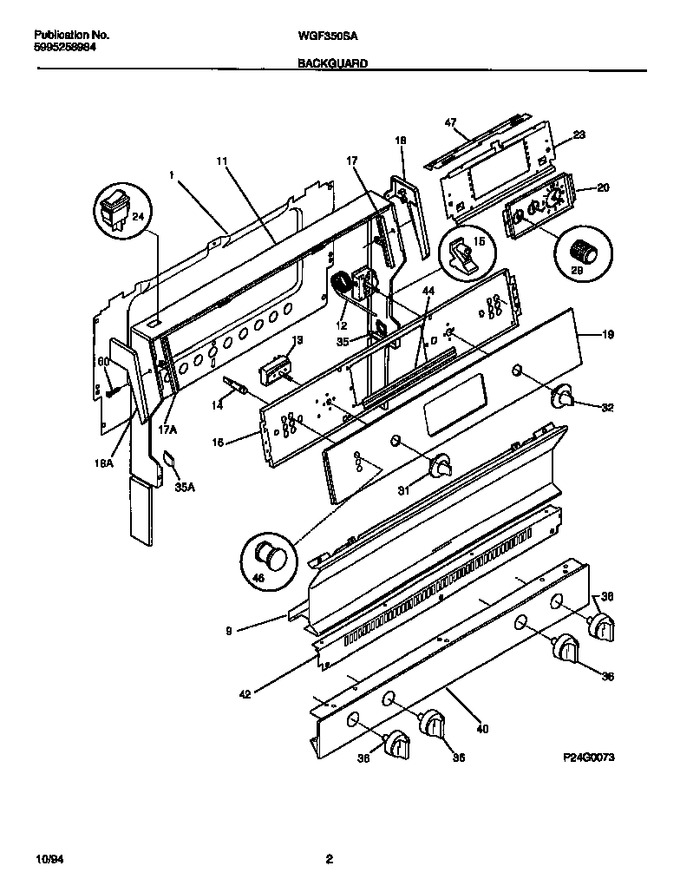

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028703		Shield-background, Rear Wall		Appelez-nous	-
9	316012501		Trim-splasher, White		Appelez-nous	-
11	316012402		Trim-wrapper, Black		Appelez-nous	-
12	316028600		Thermostat-oven		Appelez-nous	-
13	316028500		Switch-selector		Appelez-nous	-
14	316022500		Light/lamp, Indicator, Red,250 V,(2)			Immediately	$ 53.57
15	5303131237		Support-background, (2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	316013504		End Cap, Rh		Appelez-nous	-
19	316022839		Panel-control, Metal		Appelez-nous	-
20	316017408		Clock/timer, Analog 3 Stem		Appelez-nous	-
23	316022605		Bracket-clock Mtg		Appelez-nous	-
29	316029000		Knob-clock		Appelez-nous	-
31	316016920		Knob-selector		Appelez-nous	-
32	316016820		Knob-thermostat		Appelez-nous	-
35	3203077		End Cap,rh		Appelez-nous	-
36	316009008		Knob-top Valve, (4)				$ 54.86
40	316062323		Panel-manifold		Appelez-nous	-
42	3131241		Trim-vent		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
47	316022705		Retainer-timer-brkt		Appelez-nous	-
60	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
*34520	316001401		Harness-wiring, Backguard		Appelez-nous	-
14A	316022501		Light/lamp, Indicator, Red, Lock, 125, Lock (non-illustrated)		Appelez-nous	-
17A	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18A	316013505		End Cap, Lh		Appelez-nous	-
35A	3203076		End Cap,lh		Appelez-nous	-
