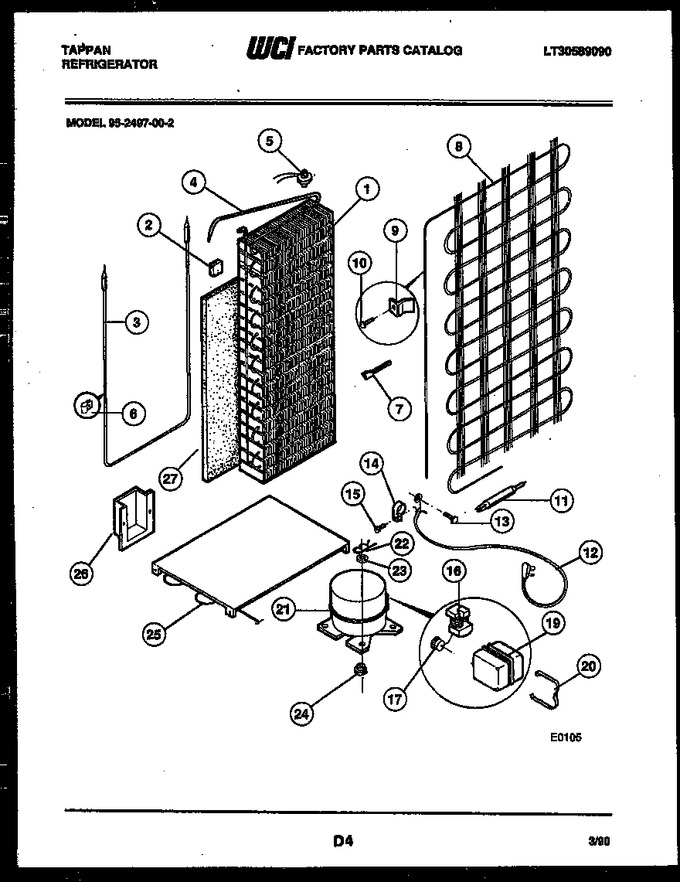

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916605 | Evaporator |
|
- | |||||
| 2 | G169493 | Block Coil (4) |
|
- | |||||
| 3 | 5303007568 | Heater, Defrost |
|
$ 233.05 | |||||
| 4 | 5308017565 | Heat Exchanger |
|
- | |||||
| 5 | 5303917954 | Thermostat, Defrost (Replaces: 5303007540) |
|
Immediately | $ 30.47 | ||||
| 6 | G167363 | Support, Heater |
|
- | |||||
| 7 | G165546 | Strap, Evaporator |
|
- | |||||
| 8 | 5300188643 | Condenser |
|
- | |||||
| 9 | G169666-01 | Bracket-mtg (4) |
|
- | |||||
| 10 | 5308000039 | Screw |
|
- | |||||
| 11 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 12 | G162549-01 | Service Cord |
|
- | |||||
| 13 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 14 | G27669 | Clamp-cord |
|
- | |||||
| 15 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 16 | 5303007173 | Relay |
|
$ 207.43 | |||||
| 17 | 5308017526 | Overload |
|
- | |||||
| 19 | 5303006411 | Cover, Terminal |
|
- | |||||
| 20 | G166057 | Strap-cover |
|
- | |||||
| 21 | 5303916009 | Compressor With Electricals |
|
- | |||||
| 22 | 5308003596 | Clip-compr (4) |
|
$ 6.62 | |||||
| 23 | G164634 | Washer-compr (4) |
|
- | |||||
| 24 | G177617 | Grommet-compr (4) |
|
- | |||||
| 25 | 5308017118 | Defrost Plate |
|
- | |||||
| 26 | G183584 | Cover, Wiring |
|
- | |||||
| 27 | G169641 | Insulator-evaporator |
|
- | |||||
| *36876 | 5308009619 | Insulator-frzr Coil-top |
|
- | |||||
| *36876 | 5308009616 | Wiring Harness-compressor & Lights |
|
- | |||||
| *36876 | 5300189379 | Hot Tube Repair Kit |
|
- | |||||
| *36876 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| *36876 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 11A | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 11B | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 21A | 5303916391 | Capacitor Assy (non-illustrated) |
|
- | |||||
| 25A | G171111 | Bracket-mtg (4) (non-illustrated) |
|
- | |||||
| 25B | 5308000039 | Screw |
|
- | |||||
| 25C | G171123 | Bracket-defrost Pan Mounting (non-illustrated) |
|
- | |||||
| 25D | G144049 | Screw |
|
- | |||||
| 4A | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 4B | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 9A | 5308009617 | Washer, No. 10 Ext Tooth Lock (non-illustrated) |
|
- |
