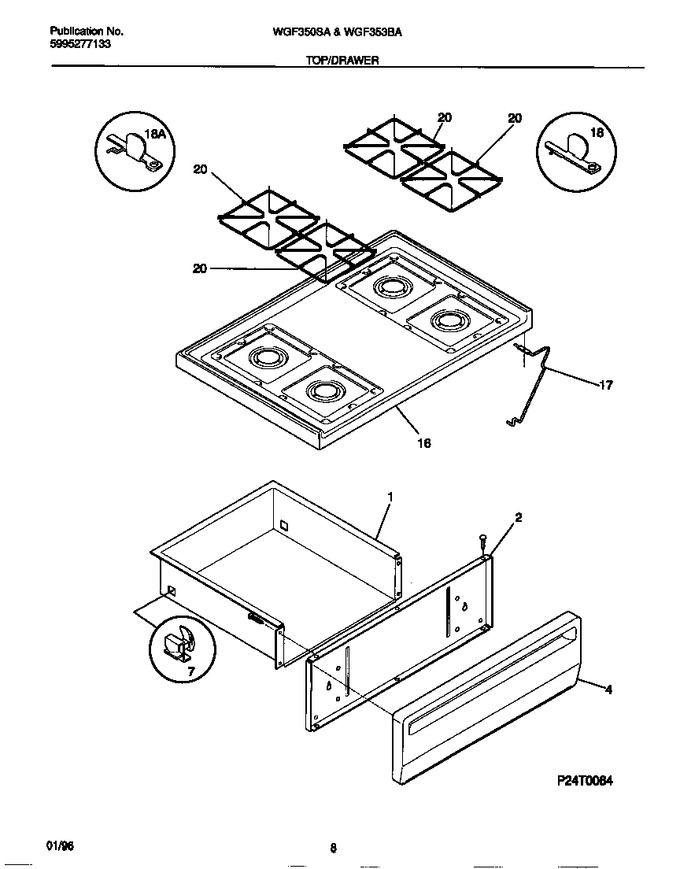

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	3131351		Main Top,white		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
20	316088900		Grate, Black, (4)		Appelez-nous	-
*18725	3131903		Bumper				$ 55.36
*18726	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*18727	316089600		Spacer-handle, (2)		Appelez-nous	-
*18728	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
