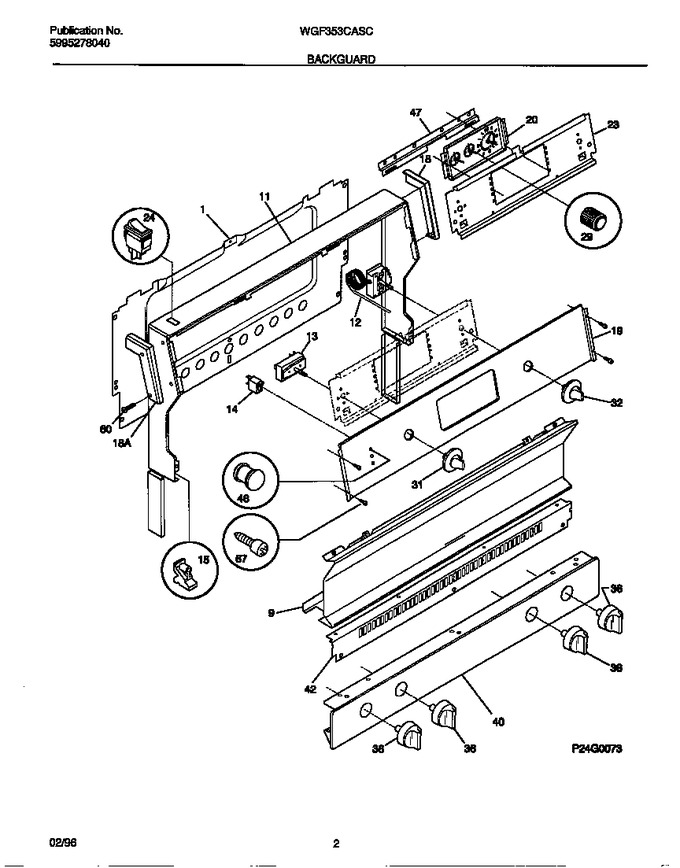

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028703		Shield-backguard, Rear Wall		Appelez-nous	-
9	316012501		Trim-splasher, White		Appelez-nous	-
11	316012410		Trim-wrapper, White		Appelez-nous	-
12	316028600		Thermostat-oven		Appelez-nous	-
13	316028500		Switch-selector		Appelez-nous	-
14	316022501		Light/lamp, Indicator, Red, Lock, 125, Lock (not Illustrated)		Appelez-nous	-
14	316022500		Light/lamp, Indicator, Red,250 V,(2)			Immediately	$ 53.57
15	5303131237		Support-backguard,(2)		Appelez-nous	-
18	316013500		End Cap, Chrome, Rh		Appelez-nous	-
18	316013501		End Cap, Chrome, Lh		Appelez-nous	-
19	316022840		Panel-control, Metal		Appelez-nous	-
20	316017409		Clock/timer, Analog 3 Stem		Appelez-nous	-
23	316022605		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
29	316029003		Knob-clock, White		Appelez-nous	-
31	316016921		Knob-selector		Appelez-nous	-
32	316016821		Knob Thermostat		Appelez-nous	-
36	316009046		Knob-top Valve, (4)   (Replaces: 316009009)				$ 51.57
40	316062326		Panel-manifold		Appelez-nous	-
42	316084300		Trim-vent		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
47	316022705		Retainer-timer-brkt		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*92840	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*92841	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*92842	5303293427		Screw, 6, 20 X 1/2, 5 Oval Head		Appelez-nous	-
*92843	316001451		Harness-wiring, Backguard		Appelez-nous	-
