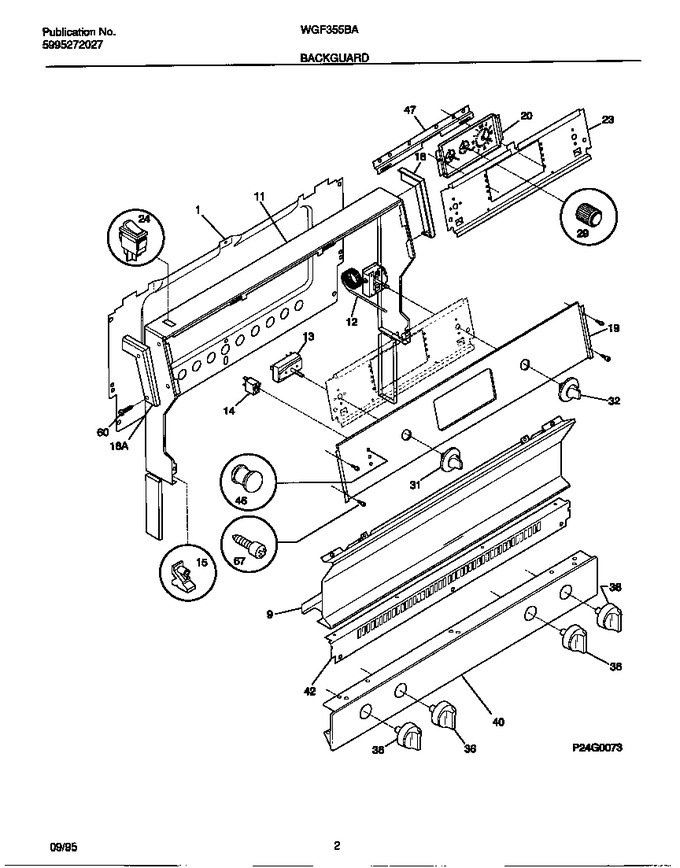

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


06 - Top/drawer


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028703		Shield-backguard, Rear Wall		Appelez-nous	-
9	316012501		Trim-splasher, White		Appelez-nous	-
11	316012402		Trim-wrapper, Black		Appelez-nous	-
12	316028600		Thermostat-oven		Appelez-nous	-
13	316028500		Switch-selector		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
18	316013505		End Cap, Lh		Appelez-nous	-
18	316013504		End Cap, Rh		Appelez-nous	-
19	316022839		Panel-control, Metal		Appelez-nous	-
20	316017418		Clock/timer, Analog 3 Stem		Appelez-nous	-
23	316022605		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
29	316029000		Knob-clock		Appelez-nous	-
31	316016920		Knob-selector		Appelez-nous	-
32	316016820		Knob-thermostat		Appelez-nous	-
36	316009010		Knob, Top Valve, (4)				$ 60.43
40	316062327		Panel, Manifold		Appelez-nous	-
42	316084300		Trim-vent		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
47	316022705		Retainer-timer-brkt		Appelez-nous	-
60	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
67	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*72560	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*72561	316001451		Harness-wiring, Backguard		Appelez-nous	-
14A	316022500		Light/lamp, Indicator, Red,250 V,(2)			Immediately	$ 53.57
14B	316022501		Light/lamp, Indicator, Red, Lock, 125, Lock (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
