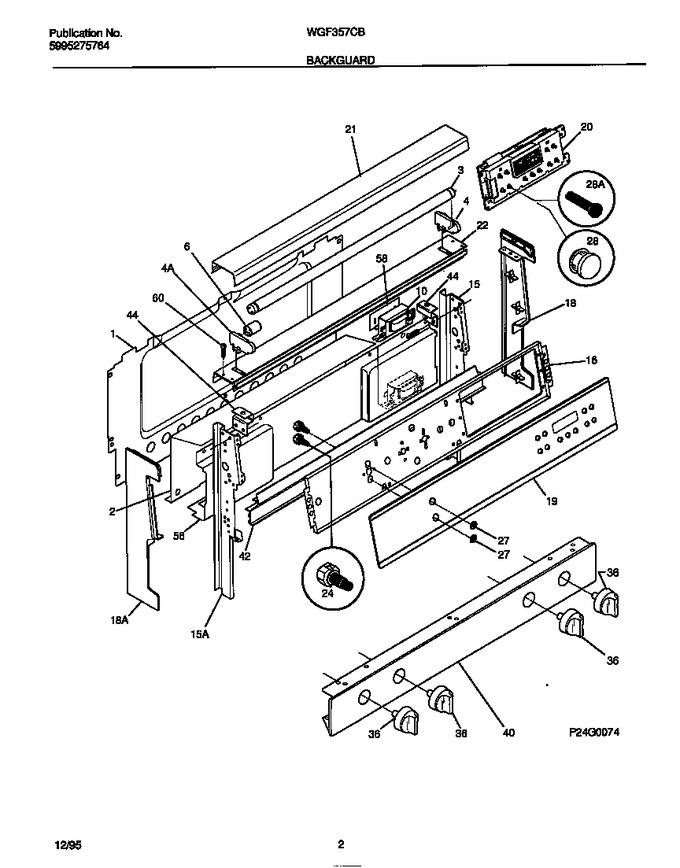

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316038801		Shield-backguard, Inner		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	316008201		Receptacle-lamp, Lh		Appelez-nous	-
4	316008200		Receptacle-lamp, Rh		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	5303051115		Ballast-lamp		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
18	316015407		End Cap, White, Lh				$ 101.85
18	316015406		End Cap, White, Rh		Appelez-nous	-
19	5303272836		Clip-backguard (not Illustrated)		Appelez-nous	-
19	316028334		Panel-control, Glass		Appelez-nous	-
20	316064501		Clock/timer, Eoc		Appelez-nous	-
21	316015303		Trim, Backguard, White, Top		Appelez-nous	-
22	316038602		Extrusion-bkgd Pnl		Appelez-nous	-
24	316052401		Switch-light/lamp		Appelez-nous	-
27	316052301		Bezel-switch, White		Appelez-nous	-
28	316015103		Push Button, Clock/timer/eoc, Gray, (11)				$ 11.60
28	316036900		Shaft-push Button, Clock/timer/eoc, (11)				$ 11.24
36	316009036		Knob-top Valve, (4)		Appelez-nous	-
40	316062363		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	316038501		Bracket-backguard, (2)		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
58	316043400		Insulator-ballast, (2)		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*94480	316001442		Harness-wiring, Backguard		Appelez-nous	-
*94481	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*94482	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
