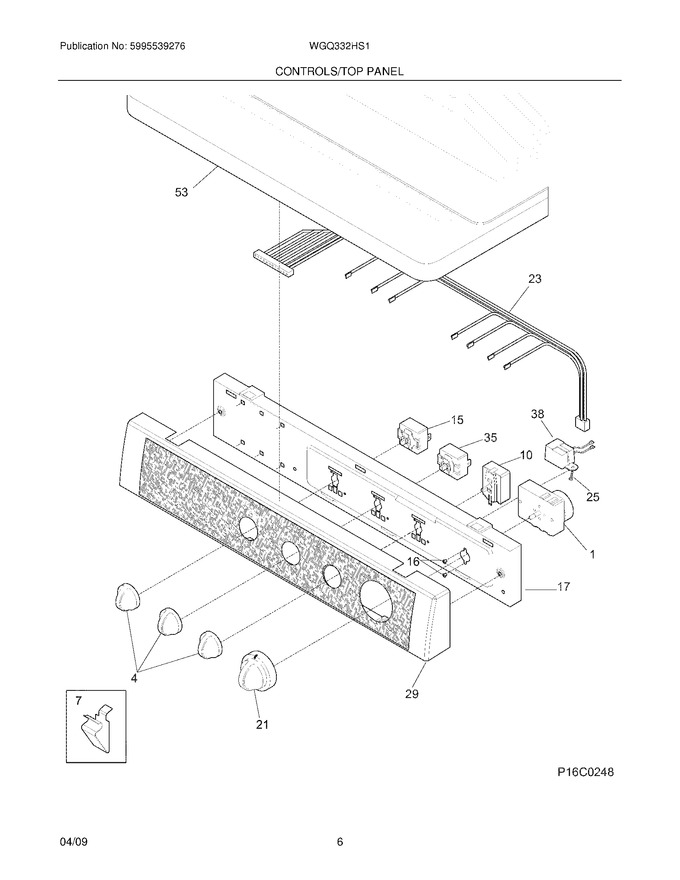

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 131965300 | Knob,rotary ,white/gray |
|
Immediately | $ 53.15 | ||||
| 7 | 3205821 | Clip,top-to-front |
|
Immediately | $ 35.44 | ||||
| 10 | 134398300 | Switch,start ,turn Type |
|
Immediately | $ 77.82 | ||||
| 16 | 134034300 | Screw,pan Hd Phillips ,8-18b X 0.250 |
|
- | |||||
| 17 | 134064501 | Bracket,control Mtg. |
|
$ 76.13 | |||||
| 21 | 131873500 | Knob,timer ,white/gray ,assy |
|
Immediately | $ 49.62 | ||||
| 23 | 137131100 | Harness |
|
- | |||||
| 25 | 5303015671 | Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point |
|
- | |||||
| 29 | 137128700 | Panel,control Console |
|
- | |||||
| 53 | 134086812 | Panel,dryer Top ,white ,stackable |
|
$ 336.42 | |||||
| F1 | 5303297139 | Timer-dryer |
|
$ 387.45 | |||||
| F15 | 134905000 | Switch,temp Selector ,3 Position |
|
$ 23.57 | |||||
| F35 | 134904500 | Switch,temp Selector ,2 Position |
|
$ 9.33 | |||||
| F38 | 5303210285 | Buzzer |
|
$ 65.78 | |||||
| FNI | 134006600 | Wiring Harness,main |
|
$ 277.78 | |||||
| FNI | 134101400 | Terminal Block,main |
|
Immediately | $ 55.99 |
