SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum

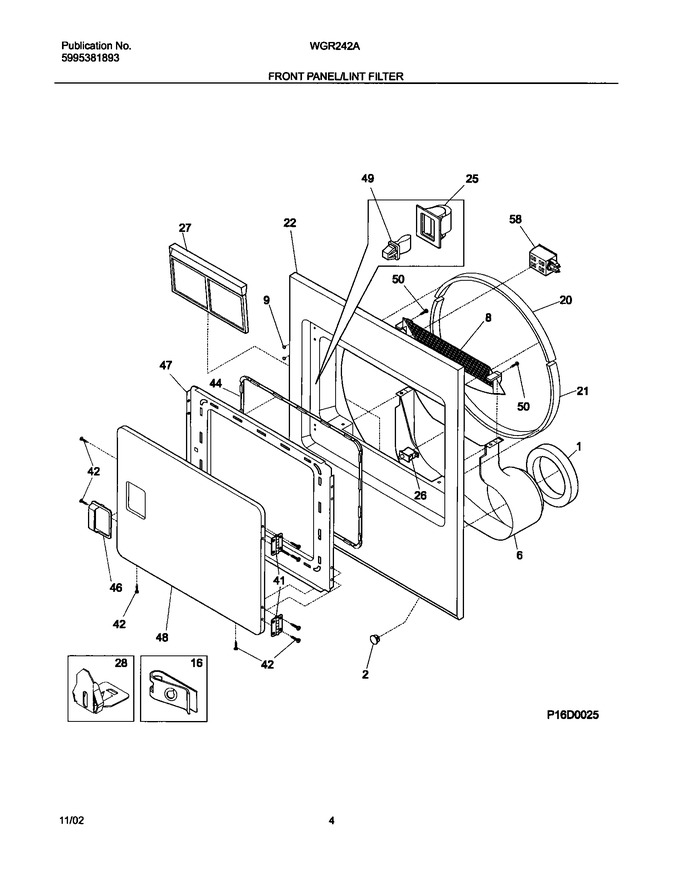

05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal,air Duct   (Replaces: 134063300)			Immediately	$ 9.22
2	131397002		Plug-dome-bisque		Appelez-nous	-
6	131621900		Duct-air		Appelez-nous	-
9	131633202		Plug,bisque		Appelez-nous	-
16	131063700		Clip-wiring				$ 18.11
20	5303937182		Seal,felt ,upper   (Replaces: 134036400)			Immediately	$ 29.58
21	5303937183		Seal,felt ,lower   (Replaces: 134134700)			Immediately	$ 35.87
22	131845915		Panel,front ,bisque ,w/light Hole		Appelez-nous	-
25	131658800		Door Catch			Immediately	$ 68.38
27	131450300		Trap,lint Blade Assy			Immediately	$ 30.47
28	5303281074		Clip-guide,(3)				$ 18.27
41	134222900		Hinge-door   (Replaces: 131627500)				$ 22.68
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
44	137551901		Gasket,door Seal   (Replaces: 131129900)			Immediately	$ 41.00
46	131644702		Handle,door ,bisque				$ 18.64
47	131844104		Panel-inner Door White				$ 224.12
48	131789305		Panel,outer Door ,bisque		Appelez-nous	-
49	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 19.85
50	131303300		Screw,pan Head Lock ,10-16ab X 0.500		Appelez-nous	-
F26	134813601		Switch,door ,with Drum Light   (Replaces: 131843101)			Immediately	$ 33.09
F58	131843500		Lamp Assy,drum Light ,w/mtg Bracket				$ 73.00
F8	131845800		Cover,lint Housing ,w/moist Sensor				$ 255.57
NI	131474700		Insulation				$ 33.67
NI	131846600		Wiring Harness,sensor & Light		Appelez-nous	-
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NI	131843500		Lamp   (Replaces: 131862800)				$ 73.00

    View Diagram in Separate Window       Print Part List
