SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter

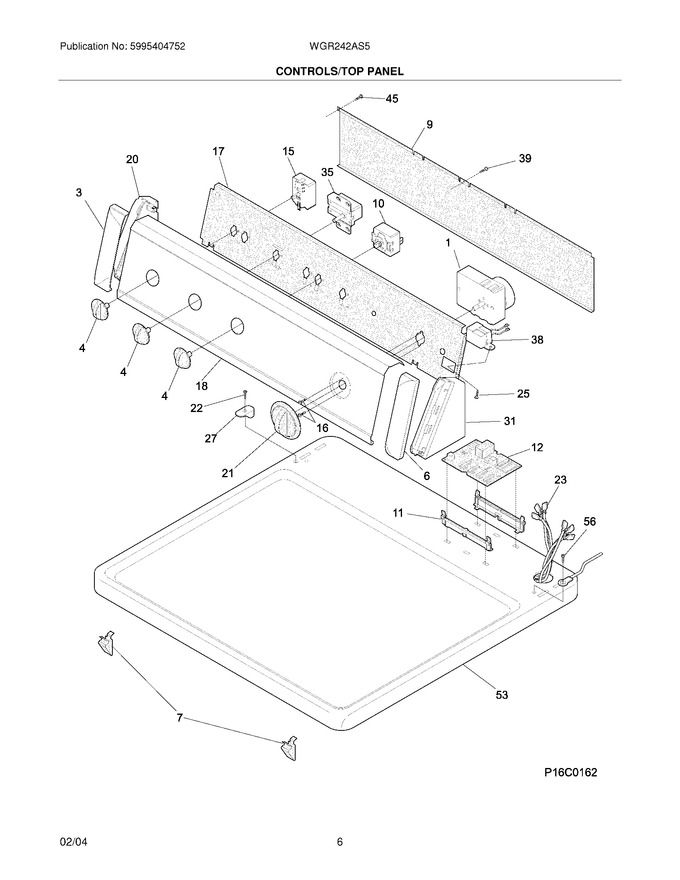

07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131905500		Timer,dryer				$ 341.95
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob,rotary ,white/dk Gray				$ 33.34
6	131122601		Cover-end Cap, White, Rh				$ 47.20
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	134088700		Panel,console Back		Appelez-nous	-
11	131587400		Bracket,pc Board Mtg. ,(2)				$ 44.40
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	131728900		Bracket,control Mtg.		Appelez-nous	-
18	134093500		Panel,trimplate ,console Front		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131810500		Knob,timer ,white/gray				$ 155.35
22	131266330		Screw,8-18 X 1.250				$ 7.63
23	134005400		Wiring Harness		Appelez-nous	-
25	5303015671		Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point		Appelez-nous	-
27	131197000		Clip-console Mtg				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
39	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086802		Panel,dryer Top ,white ,console Mtg				$ 203.75
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F10	134398300		Switch,start ,turn Type   (Replaces: 131447800)			Immediately	$ 77.82
F12	134216300		Control Board,moisture Sensor				$ 67.62
F15	131641900		Switch,temperature ,4 Posn Rotary		Appelez-nous	-
F35	131243200		Switch,temp/buz/xrinse ,2 Position		Appelez-nous	-
F38	131629400		Buzzer-mini				$ 84.30
NI	131629600		Wiring Harness,mini Buzzer				$ 15.81
NI	134101400		Terminal Block,main			Immediately	$ 55.99

    View Diagram in Separate Window       Print Part List
