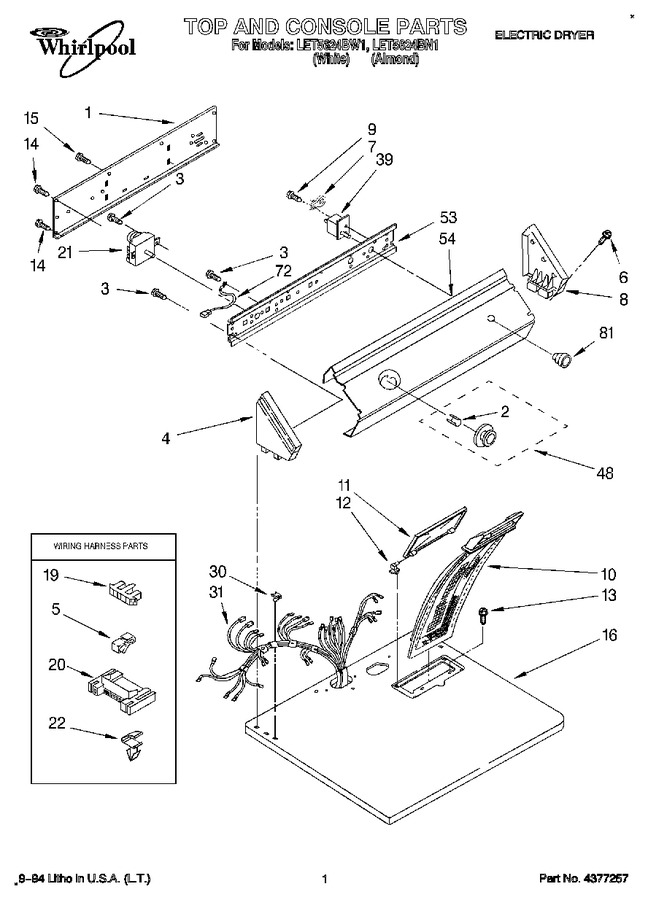

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
2	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.03
3	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 6.75
4	3358531		Cap, End (l.h.) (white)		Appelez-nous	-
4	3358532		Cap, End (l.h.) (almond)		Appelez-nous	-
5	689180		Clip, Retainer		Appelez-nous	-
6	WP388326		Screw, Console   (Replaces: 3353145)				$ 7.30
7	279872		Resistor   (Replaces: 3388706)				$ 67.45
8	3358517		Cap, End (r.h.) (almond)		Appelez-nous	-
8	3358516		Cap, End (r.h.) (white)		Appelez-nous	-
9	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 37.72
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 6.95
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
14	WP489069		Screw, Hex Head   (Replaces: 693994)			Immediately	$ 7.07
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.47
16	3396022		Top (white)		Appelez-nous	-
16	3396023		Top (almond)		Appelez-nous	-
19	3397269		Connector, Timer				$ 25.55
20	3395683		Connector (motor)			Immediately	$ 46.67
21	WP3976568		Timer, 60 Hz.   (Replaces: 3392250)			Immediately	$ 327.48
22	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.01
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.65
31	3399653		Harness, Wiring		Appelez-nous	-
39	WP3395382		Switch, Push-to-start   (Replaces: 3395382)			Immediately	$ 39.42
48	WP3957752		Timer Knob Assembly   (Replaces: 3396148)				$ 48.56
53	3396293		Bracket, Control		Appelez-nous	-
54	3397197		Panel, Control (white)		Appelez-nous	-
54	3397198		Panel, Control (almond)		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
81	3396163		Knob, Push-to-start		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	LIT3396303		Guide, Use & Care		Appelez-nous	-
	LIT3397597		Instructions, Installation		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	LIT3399125		Label, Wiring Diagram		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
