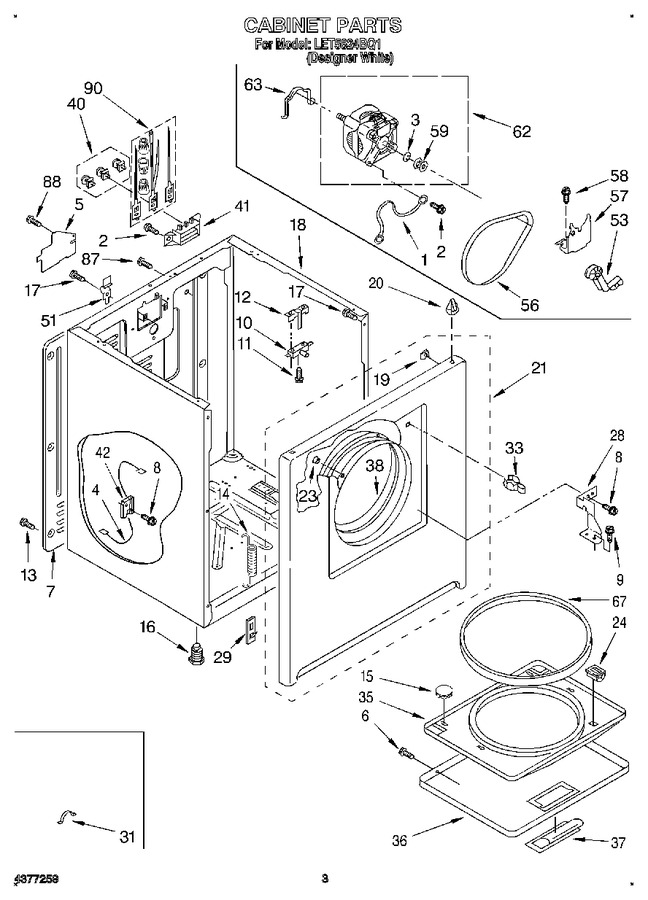

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	690236		Wire, Ground (motor)		Appelez-nous	-
2	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.08
3	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 119.21
4	230131		Cable, Door (2)				$ 8.41
5	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 539.78
6	WP694091		Screw   (Replaces: 694091)				$ 6.47
7	3396807		Panel, Rear		Appelez-nous	-
8	WP90767		Screw   (Replaces: 339493)			Immediately	$ 7.04
9	WP488627		Screw, 8-15 X 1/2   (Replaces: 688160)				$ 6.81
10	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 27.45
11	WP98129		Screw, 6-20 X 1-3/8 (2)   (Replaces: 98129)				$ 6.80
12	WP691581		Lever, Door Switch   (Replaces: 691581)			Immediately	$ 7.28
13	WP489069		Screw, Rear Panel Mounting   (Replaces: 693994)			Immediately	$ 7.07
14	WP337186		Spring, Door   (Replaces: 337186)				$ 7.25
15	WP660975		Plug   (Replaces: 660975)				$ 6.79
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
17	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
18	3399580		Cabinet (white (includes Illus. Nos. 5, 7, 16, 29, 41 And 57.))		Appelez-nous	-
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 10.25
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 11.41
21	337464		Upper Front Panel Assembly (white)		Appelez-nous	-
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 18.59
24	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.00
28	WP238460		Hinge, Door (l.h.)   (Replaces: 238460)				$ 6.78
28	238456		Hinge, Door (r.h.)				$ 5.33
29	W10854425		Clip, Front Panel (2)   (Replaces: 3394083)			Immediately	$ 14.00
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 9.98
33	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
35	695953		Door, Rear		Appelez-nous	-
36	348737		Door, Front (white)		Appelez-nous	-
37	WP348721		Handle, Door (white)   (Replaces: 690270)				$ 70.10
38	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 67.07
40	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 42.63
41	279320		Block, Terminal   (Replaces: 690261)			Immediately	$ 61.43
42	337183		Guide, Cable (r.h.)				$ 5.51
42	337182		Guide, Cable (l.h)				$ 5.51
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.04
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 20.22
56	341241		Belt, Drive   (Replaces: 660996)			Immediately	$ 16.34
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 109.41
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 12.03
59	WP8066184		Pulley 60 Hz   (Replaces: 3389627)			Immediately	$ 45.92
62	279827		Motor Assembly 60 Hz.   (Replaces: 3395652)			Immediately	$ 172.76
63	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.05
63	WP660658		(alt.)   (Replaces: 343481)				$ 7.05
63	WP660658		(alt.)   (Replaces: 685441)				$ 7.05
67	W11613302		Seal, Door   (Replaces: 3390734)				$ 48.27
87	W10850756		Screw, 10-32 X 1/2 (external Ground)   (Replaces: 697776)				$ 6.98
88	WP693995		Screw, 10-16 X 1/2   (Replaces: 693995)			Immediately	$ 6.47
90	279318		Terminal, Tinned & Brass (3) (includes Illus. 40)			Immediately	$ 90.89
