SELECT A DIAGRAM

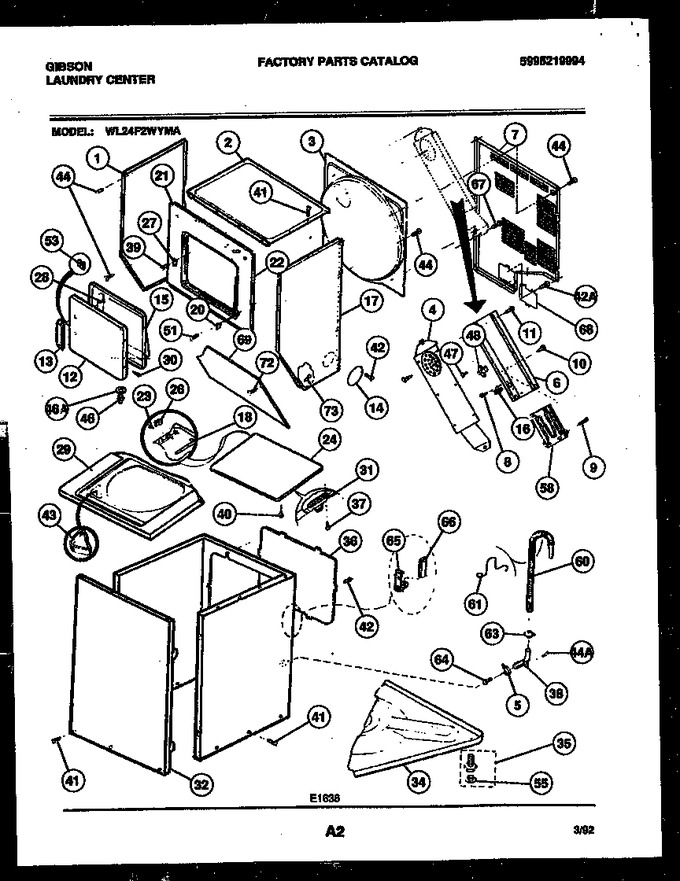

02 - Cabinet Parts


03 - Control, Drum And Blower Parts


04 - Blower, Idler Arm Clutch And Motor


05 - Tub And Water Inlet


06 - Motor And Idler Arm Clutch


07 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303209761		Panel-side Lh (white)		Appelez-nous	-
1	5303209762		Panel - Side Lh - Almd		Appelez-nous	-
2	3204949		Panel-top (almond)		Appelez-nous	-
2	3204948		Panel-top (white)		Appelez-nous	-
3	3017111		Panel-rear		Appelez-nous	-
4	08015820		Panel-front		Appelez-nous	-
5	5364154013		Clamp		Appelez-nous	-
6	3205055		Duct Rear		Appelez-nous	-
7	3016426		Panel-ventilation		Appelez-nous	-
8	5303161233		Screw		Appelez-nous	-
9	3161234		Screw		Appelez-nous	-
10	5303161233		Screw (4)		Appelez-nous	-
11	3017890		Screw (10)		Appelez-nous	-
12	3016427		Door-outer (white)		Appelez-nous	-
12	3016429		Door-outer (almond)		Appelez-nous	-
13	5303285455		Handle - Door				$ 58.96
14	3204953		Cover-exhaust (almond)		Appelez-nous	-
14	3204952		Cover-exhaust (white)		Appelez-nous	-
15	3016433		Door-inner (white)		Appelez-nous	-
15	3016435		Door-inner (almond)		Appelez-nous	-
16	08015853		Thermostat-safety		Appelez-nous	-
17	5303209764		Panel-side Rh (almond)		Appelez-nous	-
17	5303209763		Panel-side Rh (white)		Appelez-nous	-
18	3205942		Hinge Bar (2)		Appelez-nous	-
20	3204959		Hinge-door		Appelez-nous	-
21	3204963		Panel-front (almond)		Appelez-nous	-
21	3204961		Panel-front (white)		Appelez-nous	-
22	5303206877		Seal - Door		Appelez-nous	-
23	5303211089		Screw (4)		Appelez-nous	-
24	3204965		Lid (white)		Appelez-nous	-
24	3204966		Lid (almond)		Appelez-nous	-
26	3204362		Grommet-hinge		Appelez-nous	-
27	3016439		Spring-latch		Appelez-nous	-
28	5308006553		Screw		Appelez-nous	-
29	5303207100		Panel-top (almond)		Appelez-nous	-
29	5303207099		Panel-top (white)		Appelez-nous	-
30	5303161187		Screw		Appelez-nous	-
31	131390000		Strike-lid   (Replaces: 3204970)				$ 55.19
32	3204973		Panel-front (white)		Appelez-nous	-
32	3204975		Panel-front (almond)		Appelez-nous	-
34	5303283018		Base - Washer		Appelez-nous	-
35	5303272067		Leg Assy (4)		Appelez-nous	-
36	3204980		Panel-rear Access		Appelez-nous	-
37	3204368		Screw				$ 13.01
38	3161452		Coupler - Drain Hose				$ 34.39
39	3161237		Rivet		Appelez-nous	-
40	3204981		Bumper (2)		Appelez-nous	-
41	08001578		Screw (21)		Appelez-nous	-
42	5303207399		Screw (7)		Appelez-nous	-
43	3204983		Dispenser-bleach		Appelez-nous	-
44	08011280		Screw		Appelez-nous	-
46	3016440		Pin-hinge (2)		Appelez-nous	-
47	3204269		Screw		Appelez-nous	-
48	5303208647		Thermal Limiter		Appelez-nous	-
51	5303285467		Screw-hinge (4)		Appelez-nous	-
53	3016442		Plate-strike				$ 4.87
55	5303004083		Ped - Legs (4)		Appelez-nous	-
57	5303161185		Screw		Appelez-nous	-
58	08015795		Heater Assy		Appelez-nous	-
60	3205414		Hose-drain		Appelez-nous	-
61	5303204987		Retainer-hose		Appelez-nous	-
63	5364154013		Clamp		Appelez-nous	-
64	3204375		Check Valve				$ 48.06
65	5303161252		Bracket-capacitor		Appelez-nous	-
66	5308014903		Capacitor		Appelez-nous	-
67	5303285470		Screw		Appelez-nous	-
68	5303212087		Cover		Appelez-nous	-
69	3204991		Panel-access (white)		Appelez-nous	-
69	3204992		Panel-access (almond)		Appelez-nous	-
72	5308011318		Screw		Appelez-nous	-
73	3161240		Screw		Appelez-nous	-
*47773	5303937030		Insulation - Rear & Vent Panels		Appelez-nous	-
*47774	134890500		Spring-washer Lid (2)   (Replaces: 5303212876)				$ 19.85
42A	5303161233		Screw (3)		Appelez-nous	-
44A	5303209461		Screw		Appelez-nous	-
46A	5303208633		Washer		Appelez-nous	-
63A	3161250		Tie-cable (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
