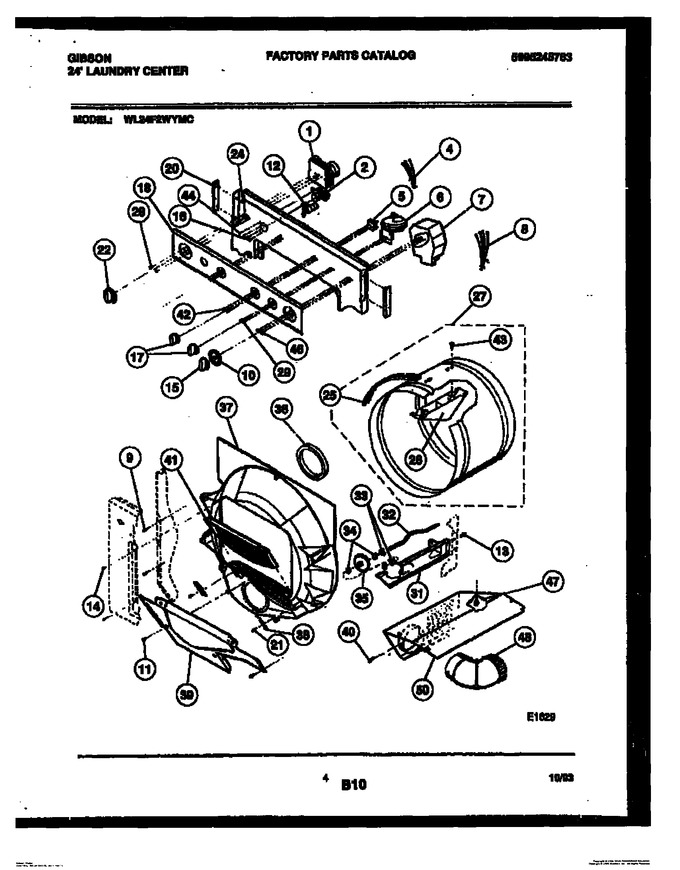

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207217 | Timer-dryer |
|
- | |||||
| 2 | 5303209765 | Switch - Push To Start |
|
- | |||||
| 4 | 5303283105 | Harness-dryer |
|
- | |||||
| 5 | 5303017895 | Switch - Temperature |
|
$ 61.01 | |||||
| 6 | 131065400 | Switch - Pressure |
|
- | |||||
| 7 | 5303289594 | Timer - Washer |
|
$ 466.83 | |||||
| 8 | 131027000 | Harness - Washer |
|
- | |||||
| 9 | 5303161244 | Screw (4) |
|
- | |||||
| 10 | 3204999 | Dial |
|
- | |||||
| 11 | 5303161244 | Screw |
|
- | |||||
| 12 | 3205000 | Switch-door |
|
- | |||||
| 13 | 08011280 | Screw |
|
- | |||||
| 14 | 5303285467 | Screw |
|
- | |||||
| 15 | 3205947 | Knob - Washer Timer |
|
$ 33.23 | |||||
| 16 | 08001544 | Screw |
|
- | |||||
| 17 | 3205948 | Knob - Rotary |
|
$ 36.02 | |||||
| 18 | 5303207362 | Trimplate |
|
- | |||||
| 20 | 3205006 | End Cap (2) |
|
- | |||||
| 21 | 5308006553 | Screw |
|
- | |||||
| 22 | 3205950 | Knob & Dial Assy |
|
- | |||||
| 24 | 3205008 | Speednut (4) |
|
- | |||||
| 25 | 5303286418 | Seal Drum (front & Rear) |
|
$ 122.80 | |||||
| 26 | 3161076 | Baffle-drum |
|
- | |||||
| 27 | 3205010 | Drum Assy |
|
- | |||||
| 28 | 08001544 | Screw |
|
- | |||||
| 29 | 08001544 | Screw |
|
- | |||||
| 31 | 3017901 | Bracket-drum Roller R.h. |
|
- | |||||
| 32 | 5308004076 | Shaft |
|
$ 71.13 | |||||
| 33 | 3161255 | Retaining Ring (4) |
|
$ 4.78 | |||||
| 34 | 08012152 | Washer (4) |
|
- | |||||
| 35 | 5308004077 | Roller & Wheel Assy (4) |
|
- | |||||
| 36 | 5303209445 | Seal - Lint Hsg |
|
- | |||||
| 37 | 5303288388 | Housing - Lint |
|
- | |||||
| 38 | 3205013 | Guide (2) |
|
- | |||||
| 39 | 3205014 | Cover-lint Hsg |
|
- | |||||
| 40 | 3161240 | Screw |
|
- | |||||
| 41 | 3205015 | Lint Screen |
|
- | |||||
| 42 | 5303208454 | Screw |
|
- | |||||
| 43 | 5308006553 | Screw |
|
- | |||||
| 44 | 08010804 | Screw |
|
- | |||||
| 46 | 08001544 | Screw |
|
- | |||||
| 47 | 3205016 | Screw |
|
- | |||||
| 48 | 3205017 | Elbow |
|
- | |||||
| 50 | 3016460 | Shield |
|
- | |||||
| *66203 | 08008454 | Clip-harness |
|
- | |||||
| *66203 | 5303281103 | Cable Tie |
|
- | |||||
| *66203 | 5308015493 | Spacer-washer Timer |
|
$ 14.36 | |||||
| *66203 | 5303208455 | Channel-lint Housing |
|
- | |||||
| 31A | 3017902 | Bracket-drum Roller L.h. |
|
- |
