Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303209761 Panel-side-lh Dryer (white) Appelez-nous -
1 5303209762 Panel-side Lh (almond) Appelez-nous -
2 3204948 Panel-top (white) Appelez-nous -
2 3204949 Panel-top (almond) Appelez-nous -
3 3017111 Panel-rear Appelez-nous -
4 08015820 Pane--front Appelez-nous -
5 5364154013 Clamp Appelez-nous -
6 3204951 Duct Rear Appelez-nous -
7 3016426 Panel-ventilation Appelez-nous -
8 5303285470 Screw Appelez-nous -
9 3161234 Screw Appelez-nous -
10 5303285470 Screw-heater Appelez-nous -
11 5303285470 Screw - Duct (10) Appelez-nous -
12 3016427 Door-outer (white) Appelez-nous -
12 3016429 Door-outer (almond) Appelez-nous -
13 5303285455 Handle - Door Special Order $ 58.96

14 3204952 Cover-exhaust (white) Appelez-nous -
14 3204953 Cover-exhaust (almond) Appelez-nous -
15 3016433 Door-inner (white) Appelez-nous -
15 3016435 Door-inner (almond) Appelez-nous -
16 5308015856 Thermostat - Safety Appelez-nous -
17 5303209764 Panel-side Rh (almond) Appelez-nous -
17 5303209763 Panel-side Rh (white) Appelez-nous -
18 3205942 Hinge Bar Appelez-nous -
20 3204959 Hinge-door (2) Appelez-nous -
21 3204963 Panel-front (almd) Appelez-nous -
21 3204961 Panel-front (white) Appelez-nous -
22 5303206877 Seal - Door Appelez-nous -
23 5303211089 Screw (4) Appelez-nous -
24 3204965 Lid (white) Appelez-nous -
24 3204966 Lid (almd) Appelez-nous -
26 3204362 Grommet-hinge Appelez-nous -
27 5303292720 Spring - Latch Appelez-nous -
28 5308006553 Screw Appelez-nous -
29 5303207099 Panel-top (white) Appelez-nous -
29 5303207100 Panel-top (almd) Appelez-nous -
30 5303161187 Screw Appelez-nous -
31 131390000 Lid Strike   (Replaces: 3204970) Special Order $ 55.19

32 3204975 Panel-front (almd) Appelez-nous -
32 3204973 Panel-front (white) Appelez-nous -
34 131157606 Base Appelez-nous -
35 5303272067 Leveling Leg (4) Appelez-nous -
36 3204980 Panel-rear Appelez-nous -
37 3204368 Screw Special Order $ 13.01

38 5308015078 Coupler Appelez-nous -
39 3161237 Rivet Appelez-nous -
40 3204981 Bumper (2) Appelez-nous -
41 08001578 Screw (9) Appelez-nous -
42 5303207399 Screw Appelez-nous -
43 3204983 Dispenser-bleach Appelez-nous -
44 08011280 Screw Appelez-nous -
46 3016440 Pin-hinge (2) Appelez-nous -
47 3204269 Screw Appelez-nous -
48 5303209894 Thermal Limiter Appelez-nous -
51 5303285467 Screw Appelez-nous -
53 3016442 Strike Plate Special Order $ 4.87

55 5303004083 Pad-legs (4) Appelez-nous -
57 5303161185 Screw Appelez-nous -
58 5303161050 Heater Assembly Appelez-nous -
60 5303292372 Hose - Drain Special Order $ 50.51

61 5303204987 Retainer-hose Appelez-nous -
63 F140887026 Clamp Appelez-nous -
64 5308014555 Check Valve Appelez-nous -
67 5303285470 Screw Appelez-nous -
68 5303212087 Cover - Terminal Appelez-nous -
69 3204991 Panel-access (white) Appelez-nous -
69 3204992 Panel-access (almd) Appelez-nous -
72 5308011318 Screw Appelez-nous -
73 3161240 Screw Appelez-nous -
*66325 134890500 Assist Spring-washer Lid (2)   (Replaces: 5303212876) Special Order $ 19.85

*66325 5303937030 Insulation - Rear & Vent Panels Appelez-nous -
*66326 08027621 Screw Tip Appelez-nous -
*66326 3204957 Hinge Gasket (2) Appelez-nous -
42A 5303285470 Screw Appelez-nous -
44A 3204984 Screw Appelez-nous -
46A 5303208633 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

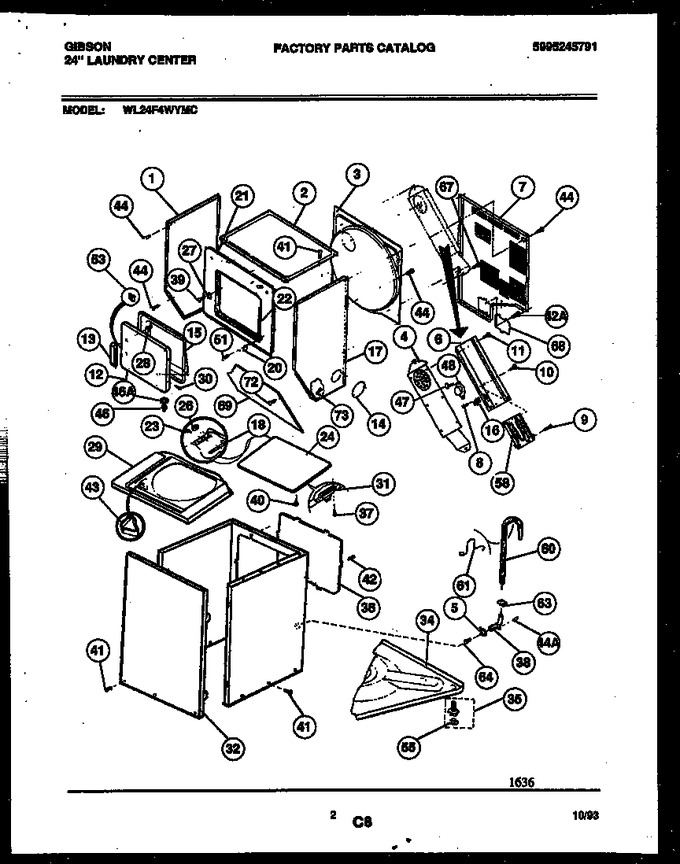

Diagram for WL24F4WYMC
