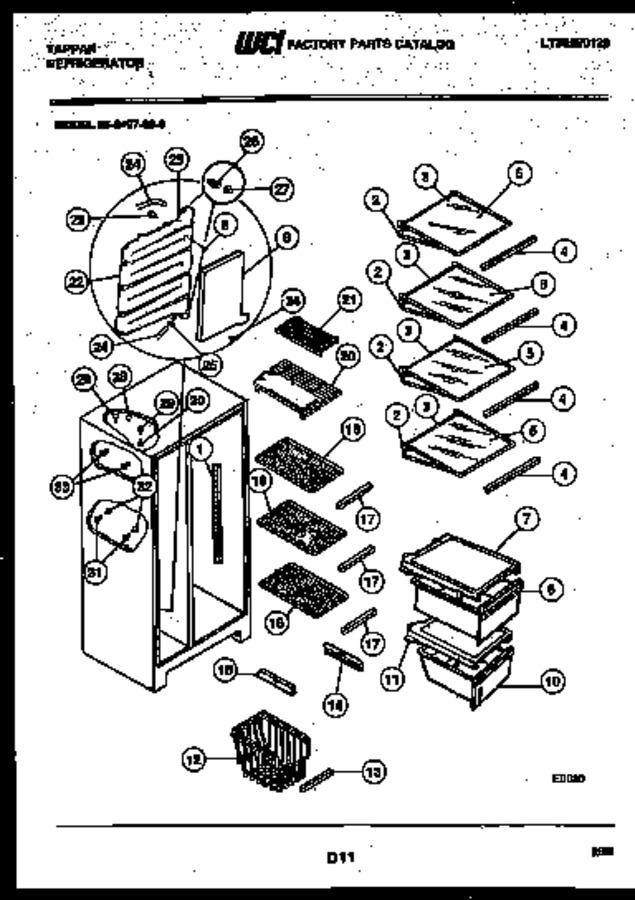

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308002744 | Channel - Rh & Lh |
|
- | |||||
| 2 | 5303209744 | Frame-shelf (4) |
|
- | |||||
| 3 | 5303209743 | Trim-shelf Rear (4) |
|
- | |||||
| 4 | 5303211388 | Trim-shelf Front (4) |
|
- | |||||
| 5 | 5303211546 | Glass-shelf (4) |
|
- | |||||
| 6 | G171260-15 | Pan-storage-upper |
|
- | |||||
| 7 | 5303001092 | Cover-pan (upper) |
|
- | |||||
| 8 | 5308010332 | Cover-water Tank |
|
- | |||||
| 9 | 5308007097 | Screw (3) |
|
- | |||||
| 10 | 3001094 | Pan-storage-lower |
|
- | |||||
| 11 | 5316972401 | Cover-pan (lower) |
|
- | |||||
| 12 | 5308001015 | Basket-freezer |
|
- | |||||
| 13 | G168625-08 | Trim-basket |
|
- | |||||
| 14 | 5303001098 | Hanger, Basket, Rh |
|
- | |||||
| 15 | 5303001099 | Hanger, Basket, Lh |
|
- | |||||
| 16 | 5303207191 | Shelf-freezer-bottom |
|
- | |||||
| 17 | 3017910 | Trim-snap On (3) |
|
- | |||||
| 18 | 5303207192 | Shelf-freezer (2) |
|
- | |||||
| 20 | 5303001104 | Shelf-plastic (lower) |
|
- | |||||
| 21 | 5303001152 | Shelf-plastic-upper |
|
- | |||||
| 22 | 5308950104 | Tank-water |
|
- | |||||
| 23 | 5303001185 | Support-tank (3) |
|
- | |||||
| 24 | 5318582501 | Tube-cut To Size (2) |
|
- | |||||
| 25 | 5303204887 | Clamp-tube (2) |
|
- | |||||
| 26 | 5308015614 | Connector-tube (2) |
|
$ 34.57 | |||||
| 27 | 5300186057 | Grommet-tank (2) |
|
$ 28.98 | |||||
| 28 | 5308010367 | Sprt-spec Barrel Frzr Light Shield (2) |
|
- | |||||
| 29 | 5303001211 | Sprt-spec Screw Mtg-im Divider (2) |
|
- | |||||
| 30 | 3001212 | Screw-divider Supts (2) |
|
- | |||||
| 31 | 5308000244 | Support-shelf (2) |
|
- | |||||
| 32 | 5303001290 | Screw-shelf Support (2) |
|
- | |||||
| 33 | 5303001291 | Sprt-ice Maker (2) |
|
- | |||||
| 34 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *39567 | 5300170910 | Clip-cantilever Shelf (8) |
|
$ 2.60 | |||||
| *39567 | 5304509705 | Grommet-shelf Mounting (6) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 1A | 5308010253 | Screw-channel Mtg (6) (non-illustrated) |
|
- | |||||
| 20A | 5317770602 | Label-lower Shelf (non-illustrated) |
|
- | |||||
| 21A | 5317770601 | Label-upper Shelf |
|
- | |||||
| 33A | 5303001292 | Screw-support (2) (non-illustrated) |
|
- | |||||
| 5A | 5303209742 | Glass-retainers (4) (non-illustrated) |
|
- |
