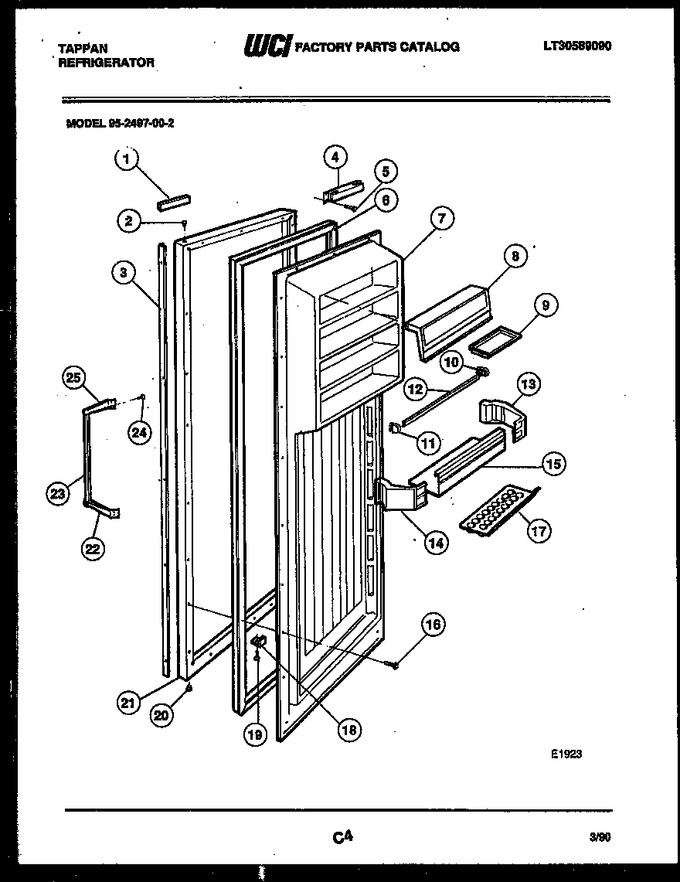

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001312 | Nameplate Assy |
|
- | |||||
| 2 | G183139 | Bearing-upper Hinge |
|
- | |||||
| 3 | 3001012 | Trim-refrigerator Door |
|
- | |||||
| 4 | 5303200272 | Closer-door |
|
- | |||||
| 5 | G169729 | Screw, Closer |
|
- | |||||
| 6 | 3200473 | Gasket-refr Door |
|
- | |||||
| 7 | G179555-01 | Panel-inner Door |
|
- | |||||
| 8 | G173014-07 | Door-compartment (2) |
|
- | |||||
| 9 | G172828-02 | Dish-butter |
|
- | |||||
| 10 | 3017376 | Support-rack Rh (2) |
|
- | |||||
| 11 | 3017379 | Support-rack Lh (2) |
|
- | |||||
| 12 | 3001005 | Rack-door (2) |
|
- | |||||
| 13 | 5303206696 | Support-shelf Rh (3) |
|
- | |||||
| 14 | 5303206695 | Support-shelf Lh (3) |
|
- | |||||
| 15 | 5303206699 | Shelf-door (3) |
|
- | |||||
| 16 | G162585 | Screw |
|
- | |||||
| 17 | G173012-03 | Tray-egg |
|
- | |||||
| 18 | G165376 | Bumper Switch |
|
- | |||||
| 19 | G162585 | Screw |
|
- | |||||
| 20 | G183138 | Bearing-lower Hinge |
|
- | |||||
| 21 | G183031-08 | Refr Door-avocado |
|
- | |||||
| 22 | G175810 | Handle-end Bottom |
|
- | |||||
| 23 | 3001013 | Handle-refr Door |
|
- | |||||
| 24 | G185566 | Screw |
|
- | |||||
| 25 | G175809 | Handle-end Top |
|
- | |||||
| *36843 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 21A | G152308-01 | Door Plug-bottom (non-illustrated) |
|
- |
