SELECT A DIAGRAM

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet

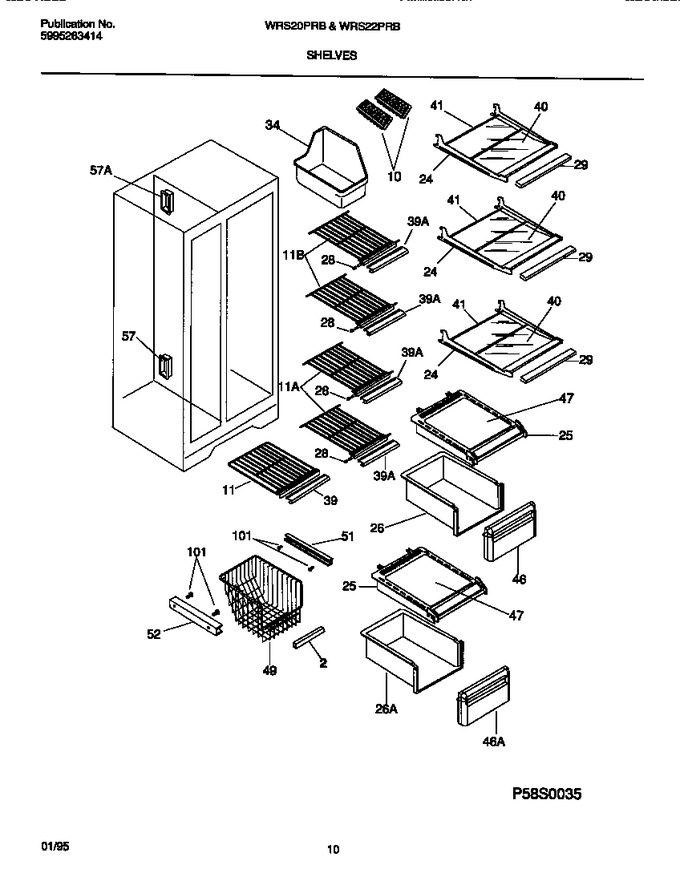

05 - Shelves


06 - Controls


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303300707		Trim-basket		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	218298005		Shelf, Freezer, Sliding, Wire				$ 137.83
24	215919135		Frame, Refr Shelf, Cantilever		Appelez-nous	-
25	218147601		Cover-storage Pan, Upper & Lower		Appelez-nous	-
26	5303288971		Pan-storage, Upper				$ 171.91
28	08013638		Cap-protector		Appelez-nous	-
29	215919713		Trim-refr Shelf, Front, (3)		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
39	5303304839		Trim-frzr Shelf		Appelez-nous	-
40	5303304838		Glass-refr Shelf, Clear		Appelez-nous	-
41	215919813		Trim-refr Shelf, Rear (3)				$ 36.44
46	5303304847		Front-storage Pan, Upper		Appelez-nous	-
49	5303288957		Basket-sliding		Appelez-nous	-
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
101	5304455650		Screw-basket Hanger, Hex Washer Head, 8ab X 3/4   (Replaces: 215005000)				$ 14.18
*90288	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	5303288962		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
11B	5303288963		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
26A	5303288968		Pan-storage, Lower				$ 204.84
39A	5303304840		Trim-frzr Shelf		Appelez-nous	-
46A	5303304846		Front-storage Pan, Lower		Appelez-nous	-
57A	5303289064		Ferrule-air		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
